DSE Model 5310 Automatic Mains Failure & Instrumentation System Operators Manual

28 Part No. 057-013 5310 OPERATING MANUAL ISSUE 7.1 18/06/2007 ADM

6 FRONT PANEL CONFIGURATION

This configuration mode allows the operator limited customising of the way the module operates.

Operation Detail

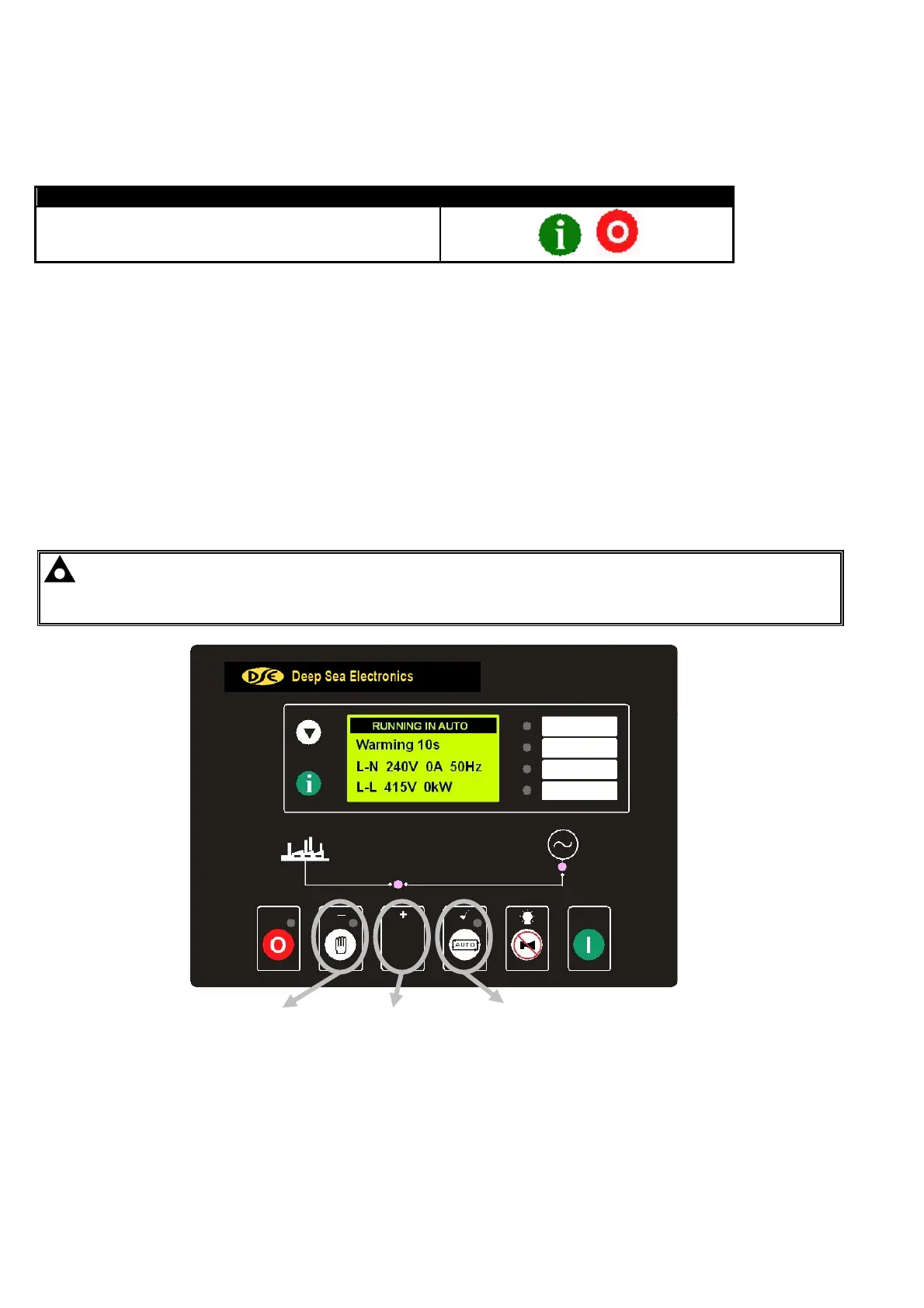

To enter the ‘configuration mode’ press both the INFO

and

STOP buttons together.

6.1.1 ENTERING THE CONFIGURATION EDITOR PIN NUMBER

The configuration editor contains two sections.

• Main configuration editor (for ‘site adjustable’ or ‘commissioning’ parameters)

• Application editor (to allow installation engineers to make application changes).

The ‘Application Editor’ is designed to allow the module to be configured for different applications without

needing to re-configure the module settings. This makes it particularly suitable for applications where the

generator would be used in a number of different roles, specifically in Rental or mobile type applications.

If the module PIN number has been set, the PIN number request is then shown. The configuration cannot be

viewed or changed until the PIN number is correctly entered.

Enter either the ‘main’ PIN or the application PIN.

If no PIN has been set, then skip to the next section.

NOTE:- The ‘Application Editor’ must be enabled first in order to make it accessible from the

module’s fascia. This is done by setting a PIN (number) for the module’s main front panel editor, using the

5xxx for Windows™ PC configuration software.

- button + button
