DSE Model 5310 Automatic Mains Failure & Instrumentation System Operators Manual

52 Part No. 057-013 5310 OPERATING MANUAL ISSUE 7.1 18/06/2007 ADM

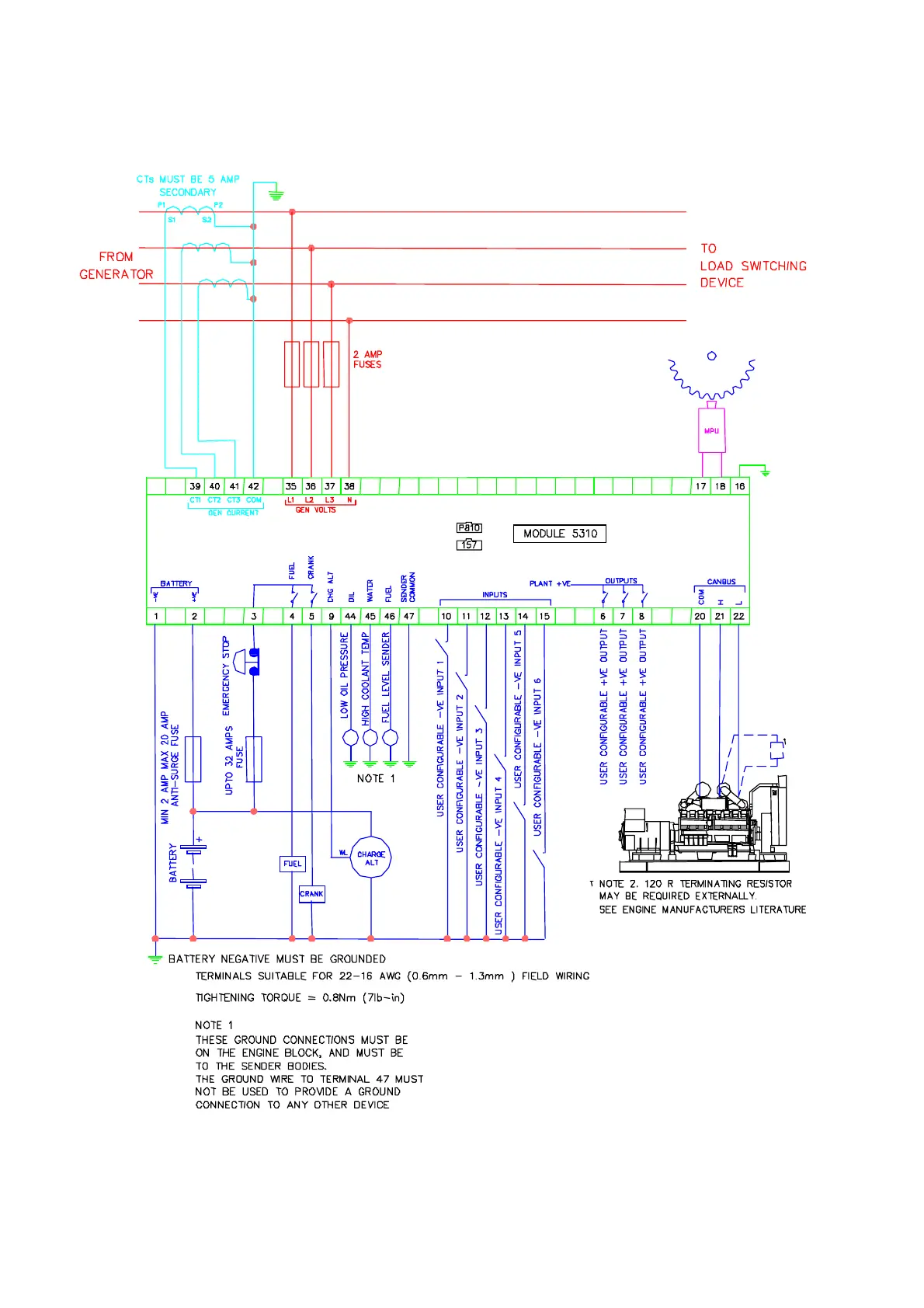

13 TYPICAL WIRING DIAGRAM

Main Page

Table of Contents3
Introduction5
Clarification of Notation Used Within this Publication5
Operation6
Automatic Mode of Operation7
Manual Operation9
Protections10
Warnings11
Analogue Pre-Alarms13
High Current Warning Alarm14
Shutdowns15
High Current Shutdown Alarm19
Electrical Trips19
Description of Controls20
Typical Lcd Display Screens22
Typical Status Display22
Typical Instrument Display22
Typical Alarm Display22
Typical Event Display23
Viewing the Instruments23
Instrument24
Manually Selecting an Instrument24
Modem Status25
Can Error Messages26
Viewing the Event Log26
User Configurable Indicators27
Controls27
Front Panel Configuration28
Entering the Configuration Editor Pin Number28
Editing a Value30
List of Adjustable Parameters in 'Main Configuration Editor31
List of Adjustable Parameters in 'Application Editor32
Editing the Current Date and Time33
Installation Instructions35
Panel Cut-Out35
Cooling35
Unit Dimensions35
Front Panel Layout36
Rear Panel Layout36
Electrical Connections37
Connection Details37
Plug "A" 8 Way37
Plug "B" 11 Way38
Plug "C" 3 Way38
Plug "D" 4 Way (Optional)39
Plug "F" 4 Way39
Plug "G" 5 Way39
Plug "H" 4 Way40
Pc Configuration Interface Connector40
Expansion Output Connector40
Connector Function Details41
Plug "A" 8 Way41
Plug "B" 11 Way41
Plug "C" 3 Way42
Plug "D" 4 Way (Optional)42
Plug "F" 4 Way42
Plug "G" 5 Way43
Plug "H" 4 Way43
Purchasing Additional Connector Plugs from Dse43
Specification44
Commissioning46
Pre-Commissioning46
Fault Finding47
Factory Default Configuration48
Typical Wiring Diagram52
Appendix53
Alternative Wiring Topologies53
Phase, 3 Wire53
Phase, 2 Wire54
Phase, 3 Wire ( 2 Phase Centre Tap Neutral)54
Icons and Lcd Identification55
Push Buttons55
Status / Measurement Units55
Led Indication55
5310 Idmt Tripping Curves (Typical)56
Sender Wiring Recommendations57
Earth Return Senders57
Insulated Return Senders57
Fuel Level Senders57
Can Interface59
Output Expansion59
Relay Output Expansion (157)59
Led Output Expansion (548)59
Input Expansion59
Communications Option Connections60
Description60
Pc to Controller (Direct) Connection60
Modem to Controller Connection60
Rs485 Link to Controller61
Modbus62
Enclosure Classifications63
