DSE Model 5310 Automatic Mains Failure & Instrumentation System Operators Manual
Part No. 057-013 5310 OPERATING MANUAL ISSUE 7.1 18/06/2007 ADM 53
14 APPENDIX
14.1 ALTERNATIVE WIRING TOPOLOGIES
The 53xx series controllers can support many different wiring topologies (AC systems) to suit the many systems in
use worldwide. The ‘Typical connection diagram’ details how to connect the module when used in a 3 phase, 4
wire system (3 phase star connected alternators). Changes to this typical wiring diagram for other AC systems are
detailed below.
NOTE:- The factory default configuration for the 5310 module is for use with the 3 phase, 4 wire AC
system. If another system is to be used, the controller must be reconfigured using the 5xxx series
configuration software.

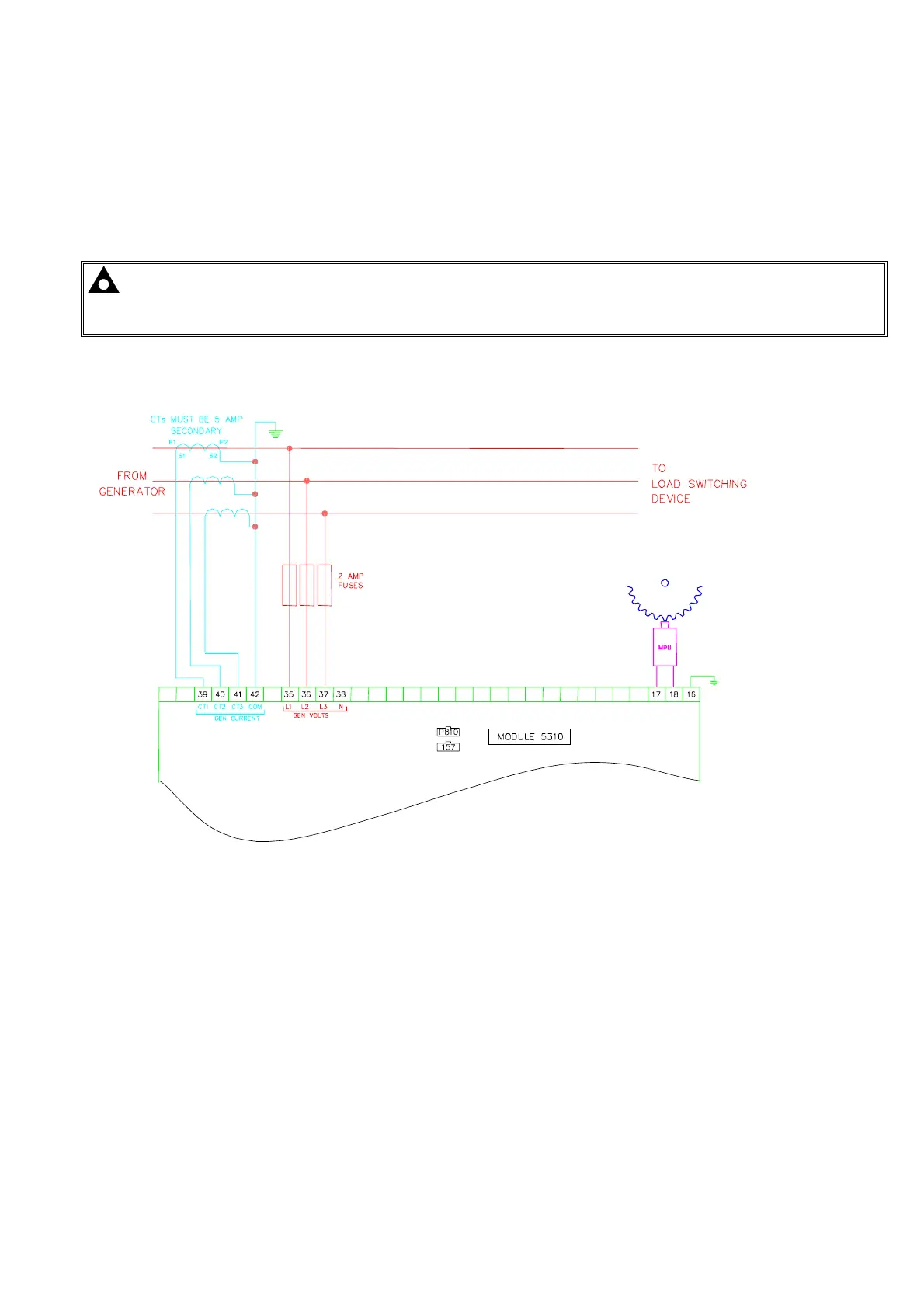

14.1.1 3 PHASE, 3 WIRE
