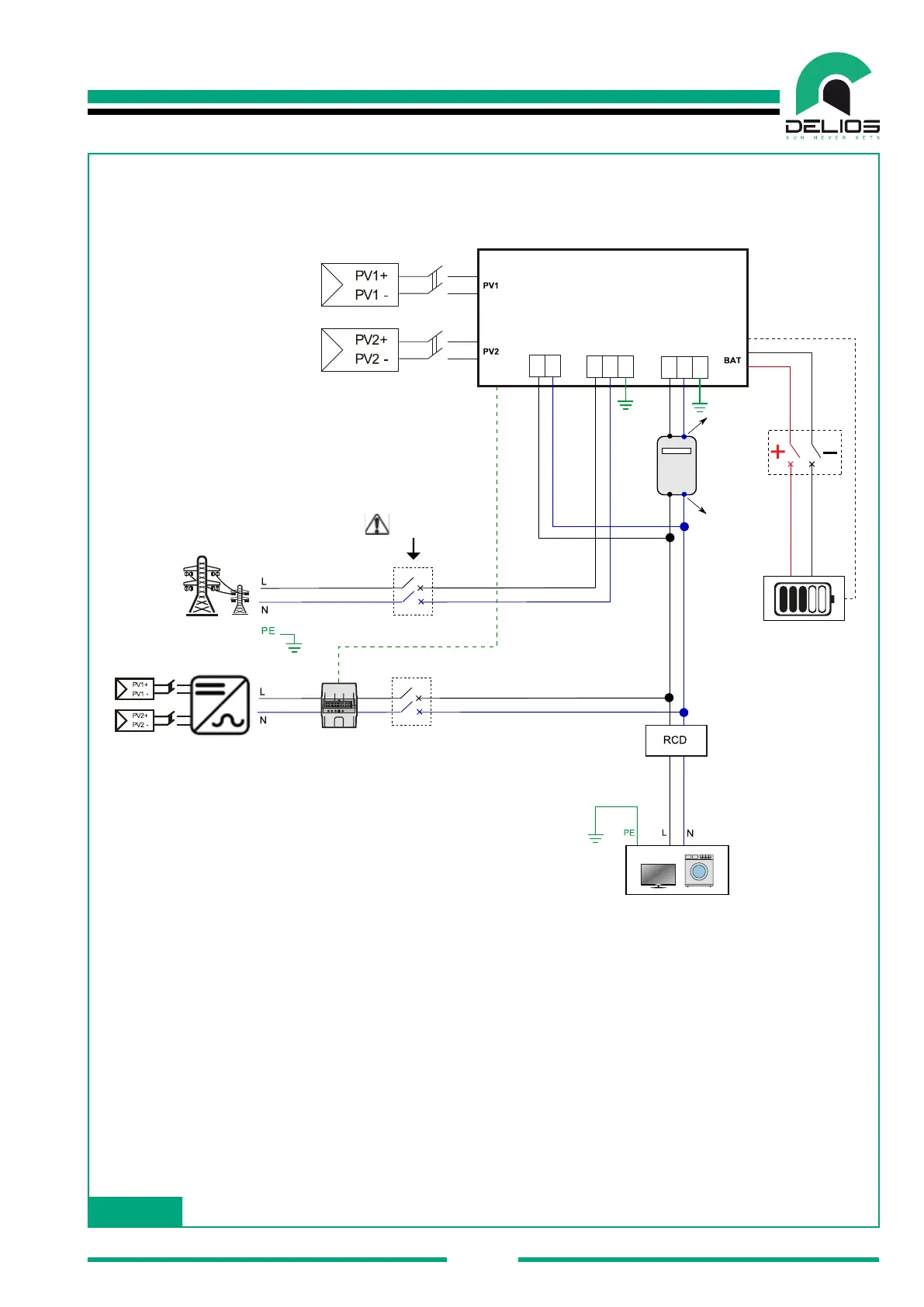

Delios DLS 300 - Page 13

RS485
CAN
GRID IN
L N
L N PE
L N PE
GRID OUT AC OUT
SUPPLY
TERMINALS
MEASURING
TERMINALS
PRODUCTION
COUNTER (1)
HOME LOADS
BATTERY
DLS / DLS-C
(1) Where required by local regulations
(2) Optional
PV METER (2)
30A MAX
Fig. 07
DLS / DLS-C Series
13
Cod.: 240.010.0042
