RS485
CAN
GRID IN
L N
L N PE
L N PE
GRID OUT AC OUT
ENERGY
METER
HOME LOADS
PRIVILEGED LOADS
BATTERIA
DLS / DLS-C
PV METER (2)
30A MAX
(1) Where required by local regulations
(2) Optional - WARNING: Prior to install, contact the Technical Service to correctly program
the ModBuss address
PRODUCTION
COUNTER (1)
MEASURINGI
TERMINALS
SUPPLY
TERMINALS

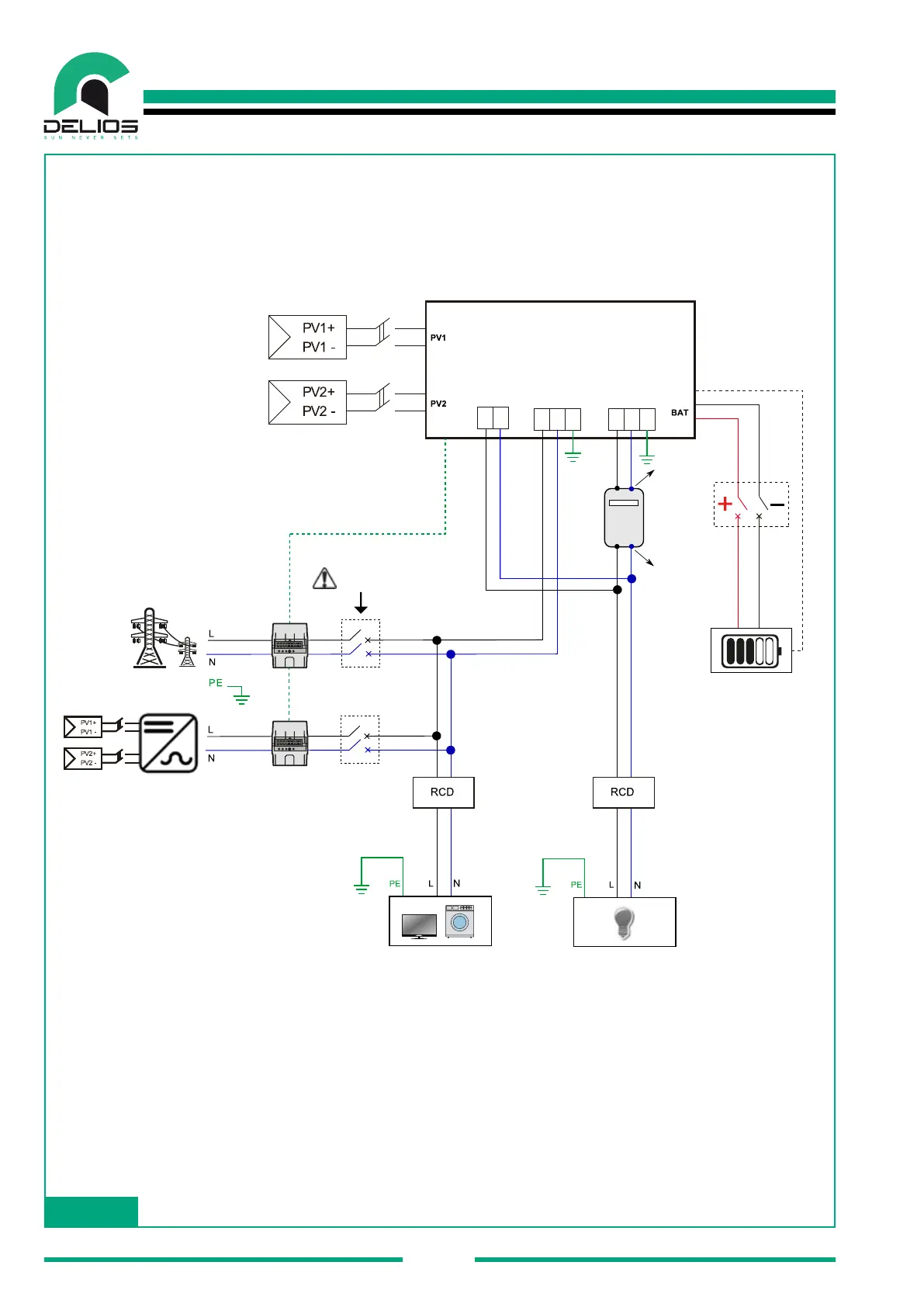

Fig. 08
14
Cod.: 240.010.0042
DLS / DLS-C Series
