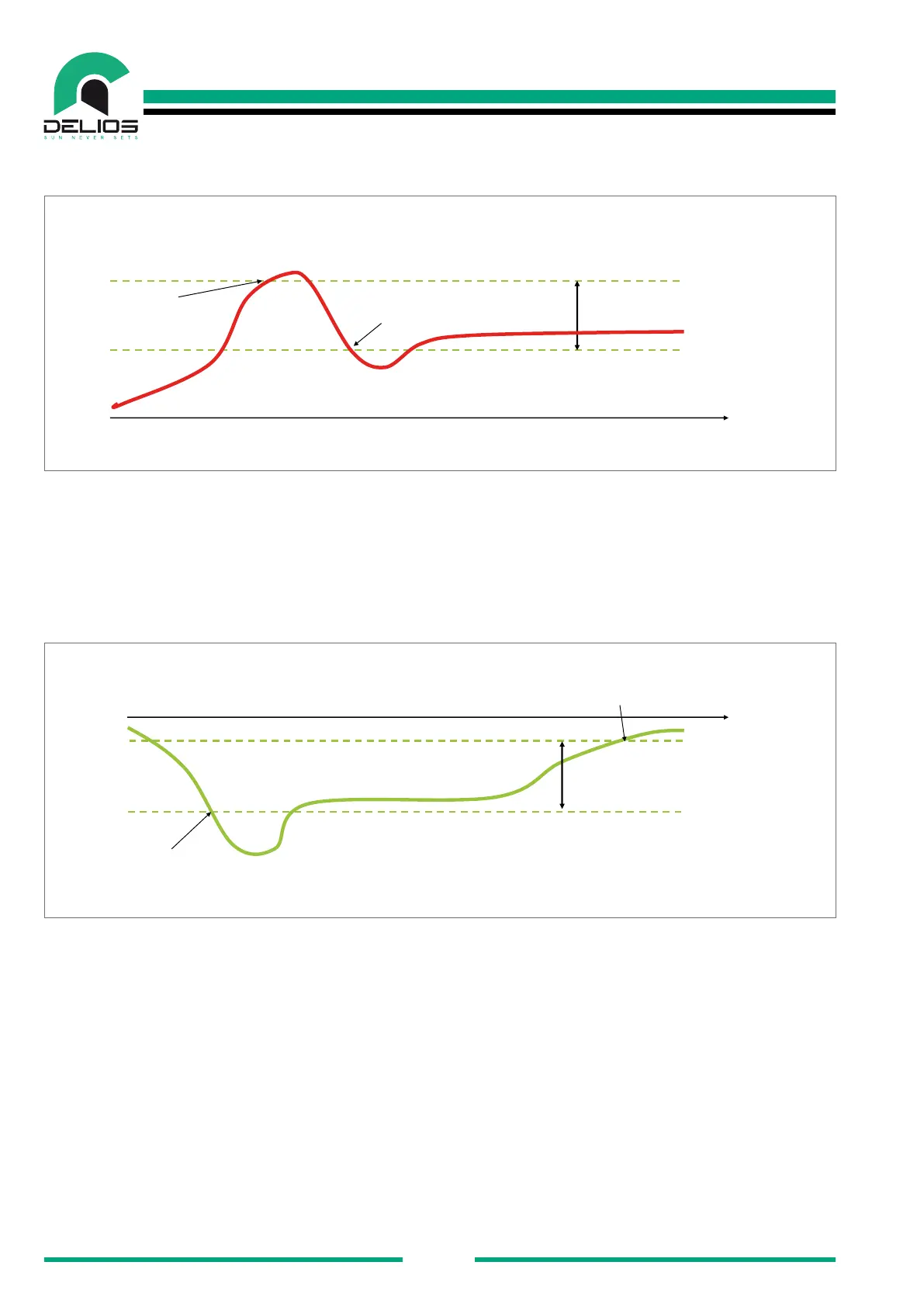

- Contact triggering on "P
GRID
> 0 - Power consumption from the grid"
t
P start
P start–Physt
P
grid
power > 0
Contact ON
Load
disconnected
from the
Contact OFF
Load reconnetcedto
thegrid
Hysteresisgap (P hyst)
The load is normally connected to the grid. When the consumption exceeds the set threshold, the SMART
LOAD contact disconnects the oad from the grid and reconnects when the consumption falls within the set
limits.
The function is usefuel you to reduce grid consumption.
- Contact triggering on "P
GRID
< 0 - Power feed-in the grid"
t
P start
P start–Physt
P
grid
power < 0
Contact ON
Contact OFF
Hysteresisgap (P hyst)
When the ernergy fed into the grid exceeds the set threshold, the SMARTLOAD contact activates the se-
condary load/storage system (e.g. heater, heaat pummp, air conditioner).
The function is usefuel to maximize the self-consumption of the energy produced by the plant.
