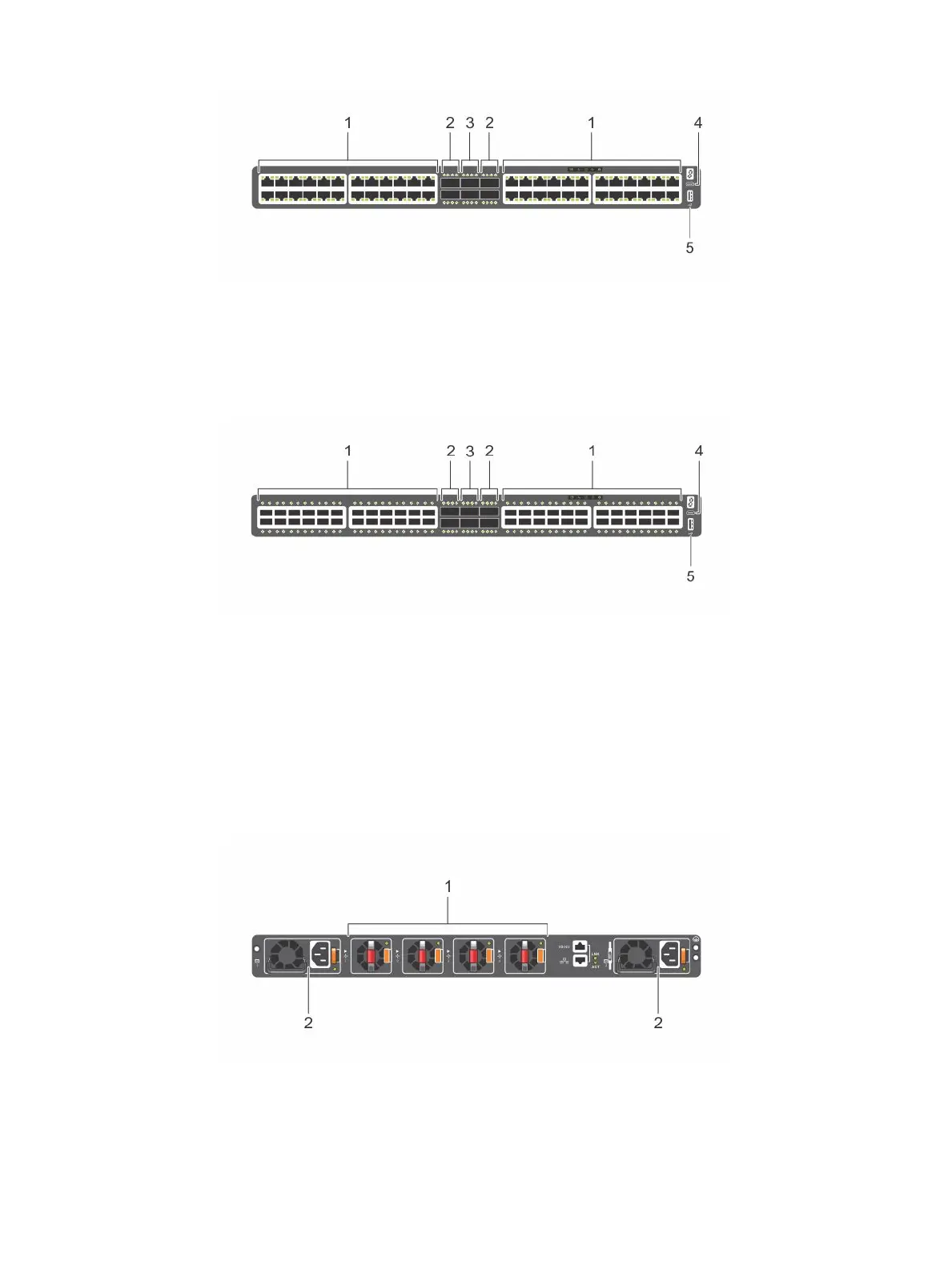

Figure 6. S4148T-ON I/O-side view
1 Forty-eight copper BaseT RJ-45 optical ports 2 Four QSFP28 optical ports
3 Two QSFP+ optical ports 4 Micro USB-B console port
5 USB Type-A
Figure 7. S4148U-ON switch I/O-side view
1
Unied Fibre channel and Ethernet SFP+ ports and Ethernet-
only SFP+ optical ports
2 Unied Fibre Channel and Ethernet QSFP28 ports
3 Ethernet QSFP+ optical ports 4 Micro USB-B console port
5 USB Type-A
The S4100-ON Series PSU-side of the switch has two hot-swappable power supplies (PSUs) with integrated fans and four hot-swappable
fan trays. The platforms include one RJ-45 10/100/1000 Base-T Ethernet management port, one RJ-45 console port, and one RS-232
serial console port on the PSU side of the switch.
Figure 8. S4100-ON Series PSU-side view
1
Four hot-swappable fan units 2 Two hot-swappable PSUs with integrated fans
S4100–ON Series switch 11
