374 Maintaining Your Printer

Removing the Toner Cartridge

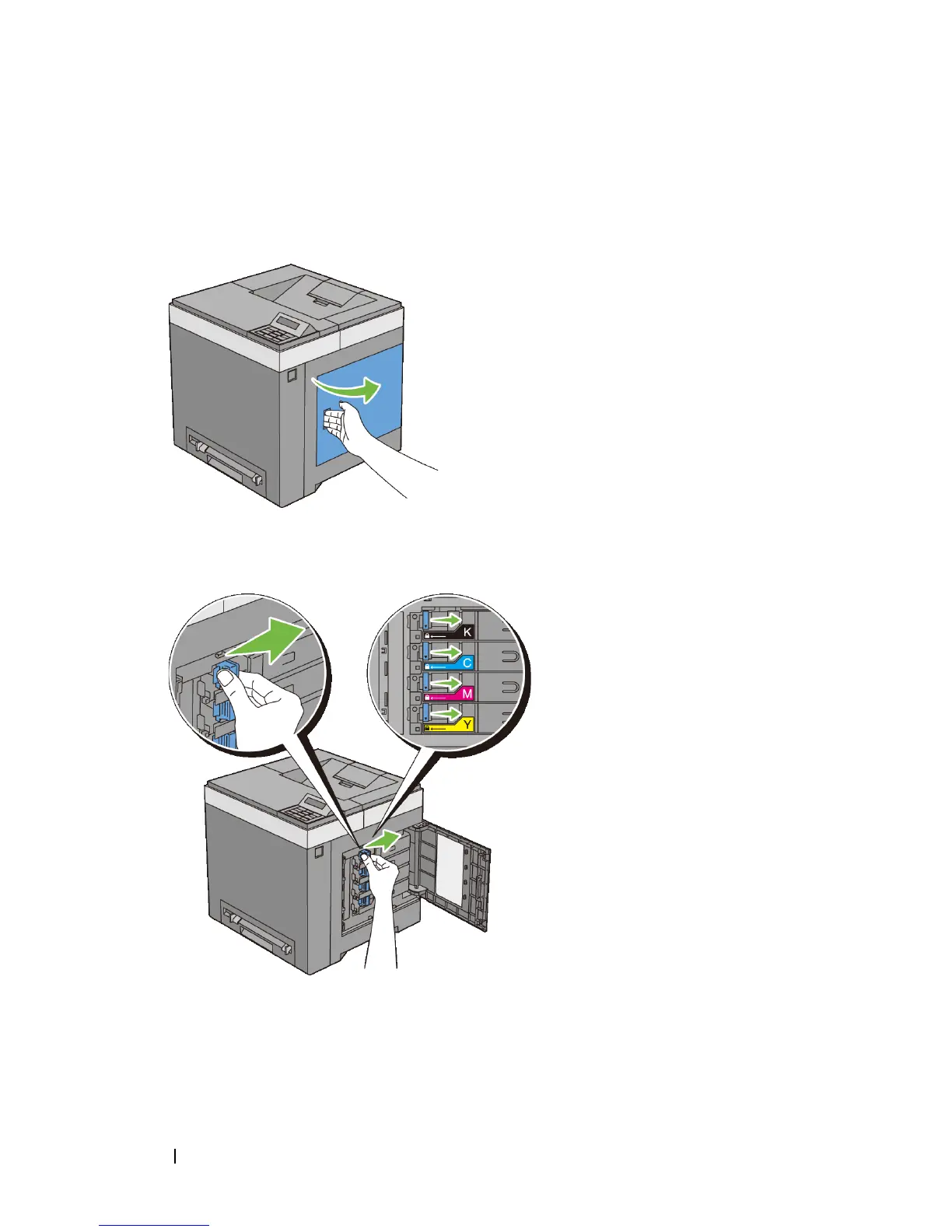

Open the toner access cover.

Push the latch(es) backwards to pop open the toner cartridge(s) that you want

to replace.

Pull the cartridge holder until it clicks, and then pull out the toner cartridge.
