386 Maintaining Your Printer

Installing a Retard Roller in the Standard 250-Sheet Tray

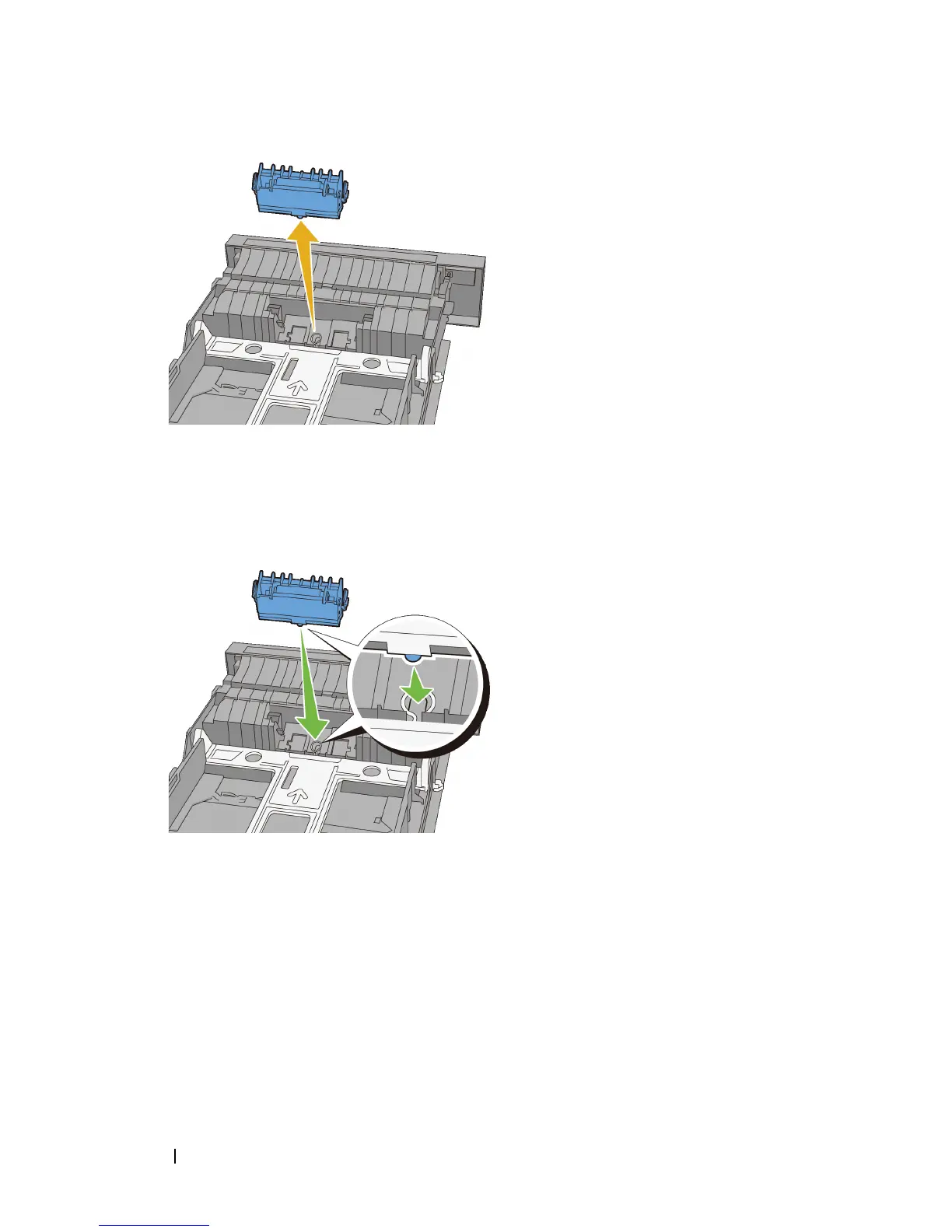

Align the new retard roller with the groove on the axle.

Insert the retard roller into the axle until it snaps. The protrusions fit

completely into the slots and the roller hook reseats into the groove on the

axle.
