Maintaining Your Printer 379

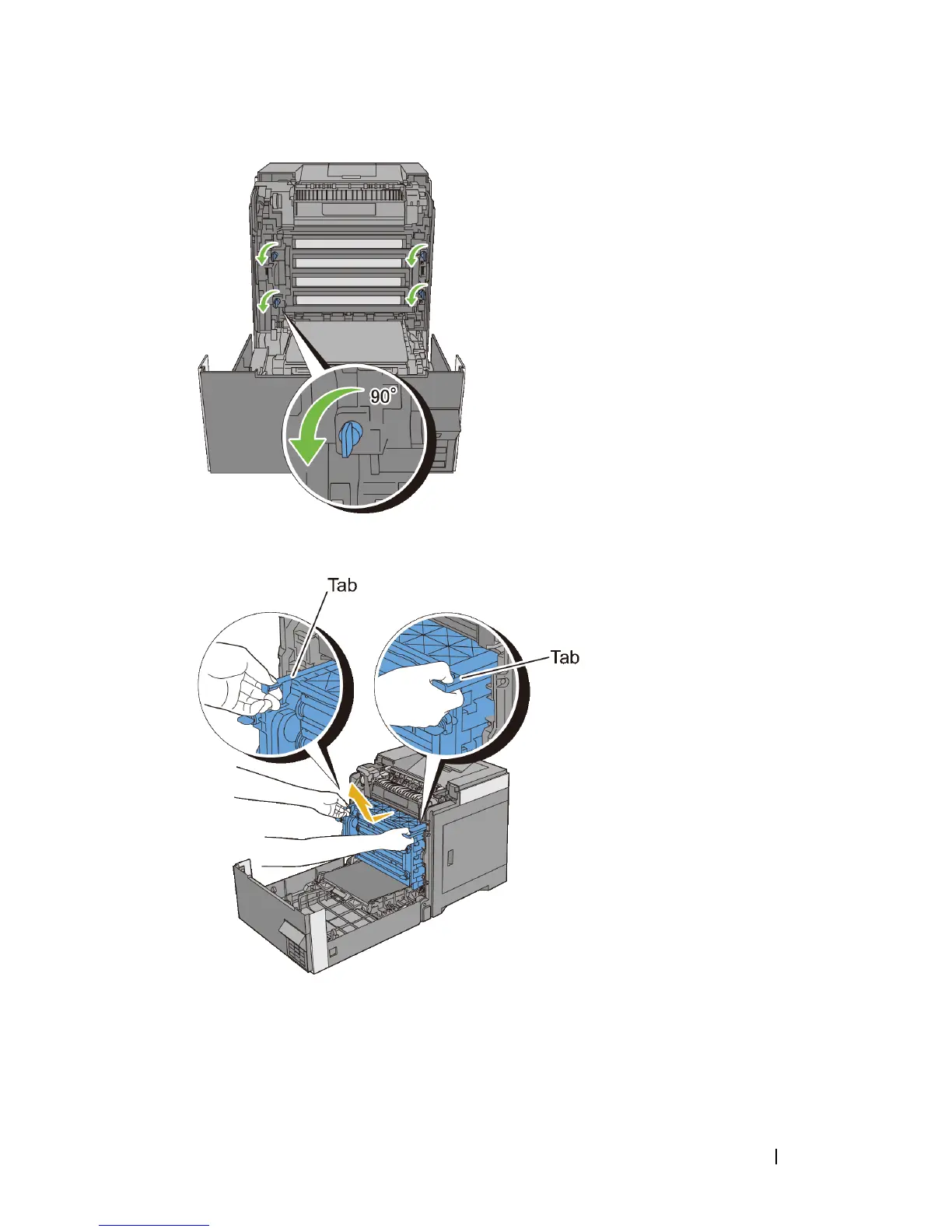

Hold the gray tabs, and then pull the PHD unit out of the printer.

Installing a PHD Unit

Open the PHD packaging.
