380 Maintaining Your Printer

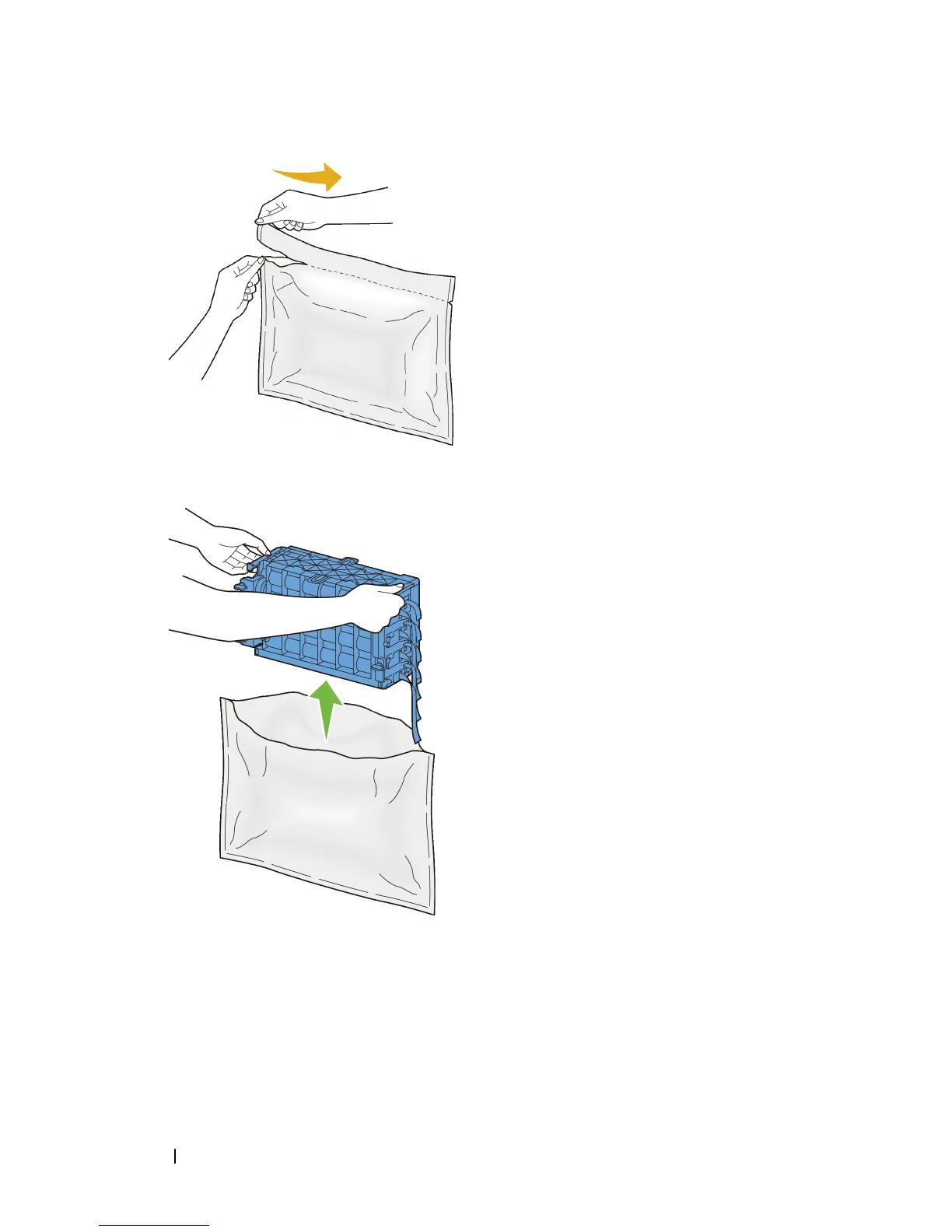

Take out the PHD unit from the packaging.

Completely pull out the eight yellow ribbons from the PHD unit.
