382 Maintaining Your Printer

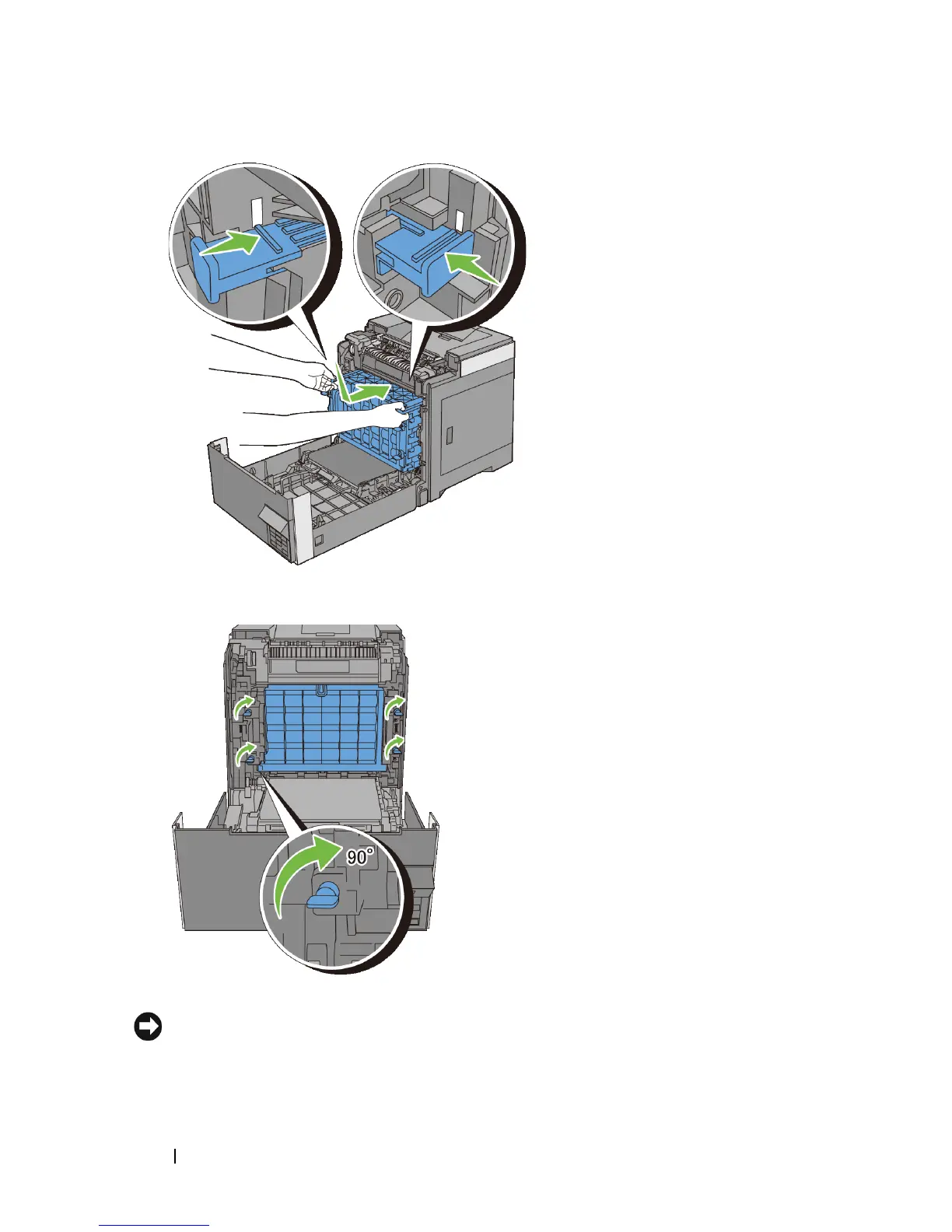

Turn the four PHD lock levers 90-degrees clockwise to lock the PHD unit.

Remove the front protective cover from the PHD unit.

NOTICE: Ensure that you do not hit the belt unit when removing the front

protective cover.
