Dell 2150cn - Page 393

To Next Page

To Previous Page

Maintaining Your Printer 391

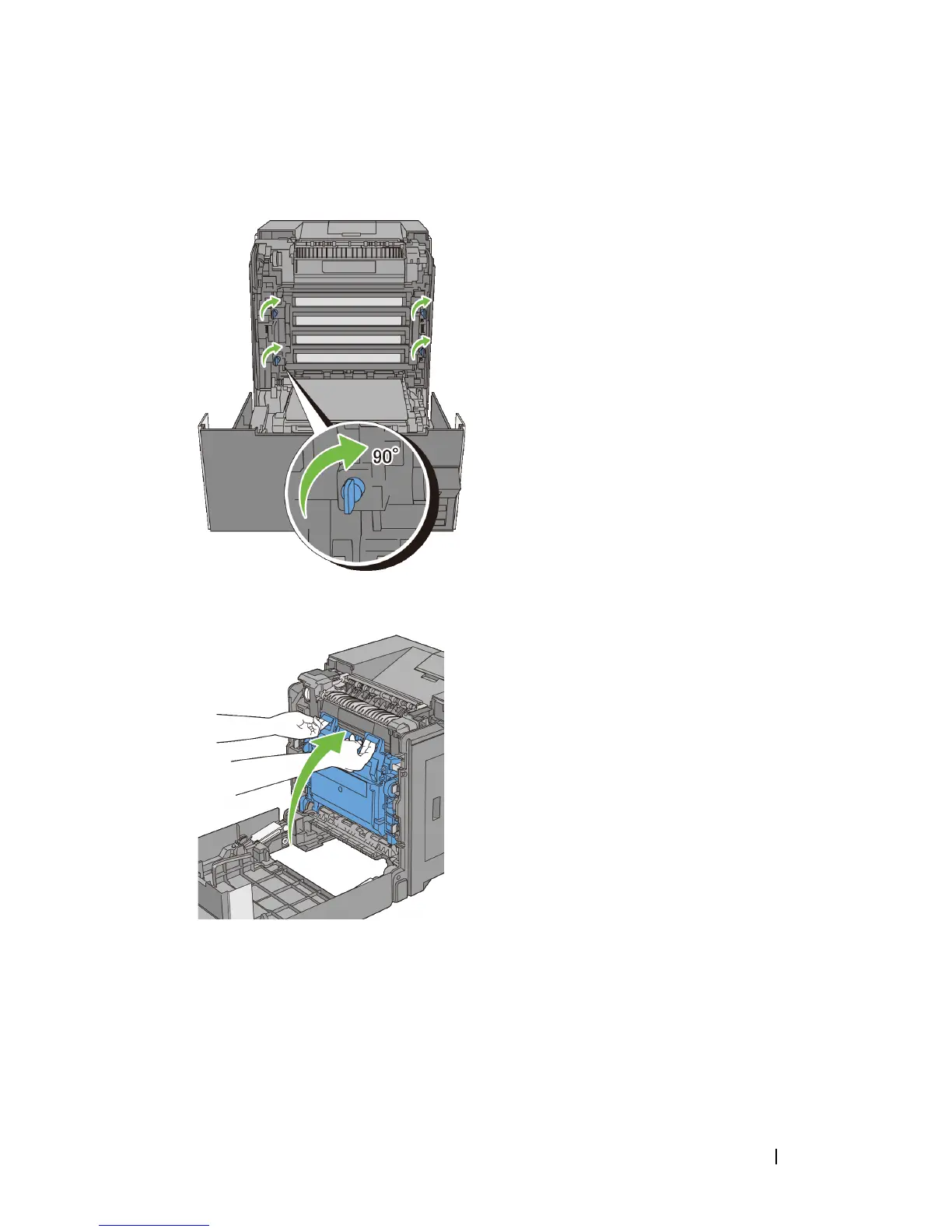

Insert the PHD unit until it stops, and then turn the four PHD lock levers 90-

degrees clockwise to lock the PHD unit.

Close the belt unit, and push at the top of the unit until it clicks.

Close the front cover.
