Dell 2150cn - Page 397

To Next Page

To Previous Page

Maintaining Your Printer 395

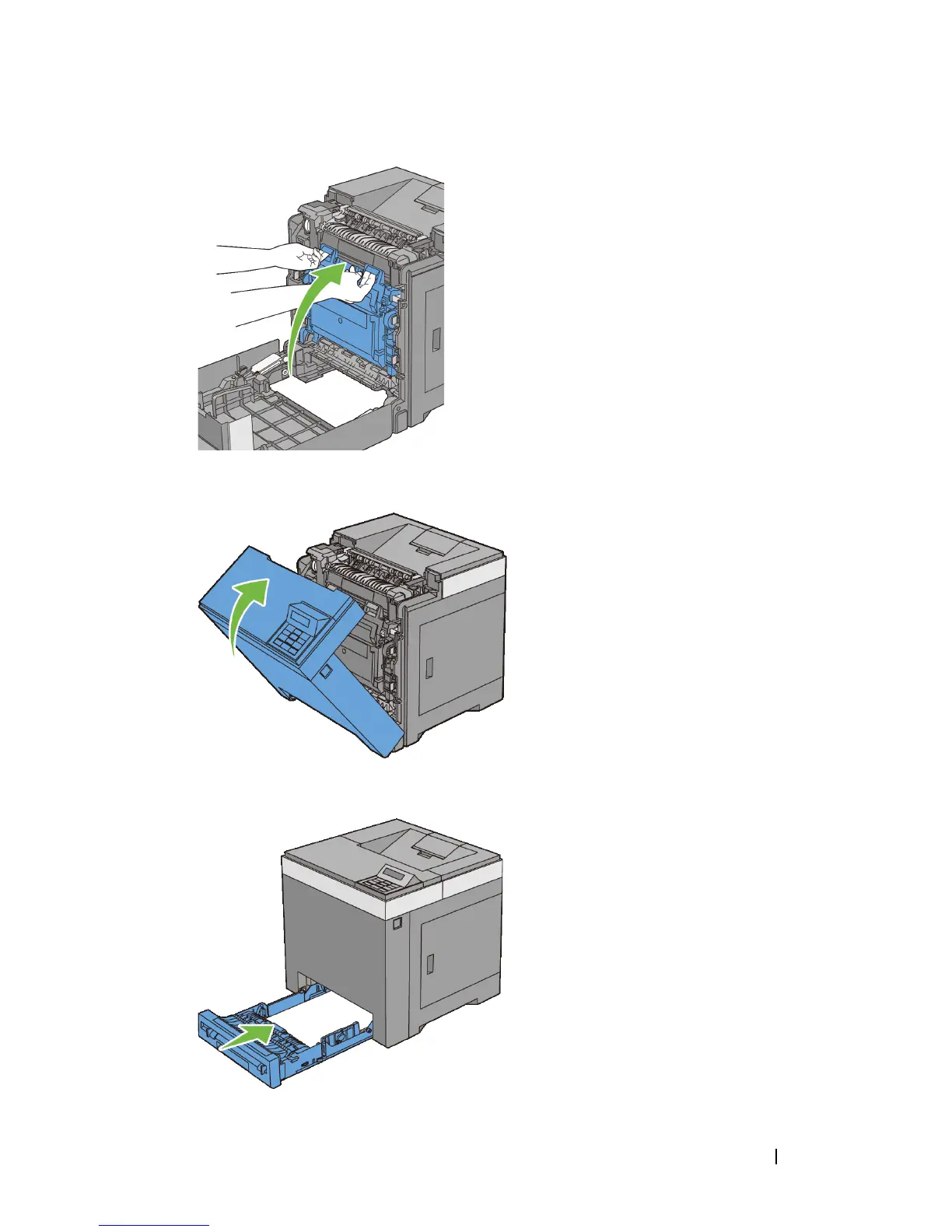

Close the front cover.

Insert the standard 250-sheet tray into the printer, and push until it stops.
