Clearing Jams 419

FILE LOCATION: C:\Users\fxstdpc-

admin\Desktop\0630_UG??\Mioga_SFP_UG_FM\Mioga_SFP_UG_FM\section27.fm

DELL CONFIDENTIAL – PRELIMINARY 9/13/10 - FOR PROOF ONLY

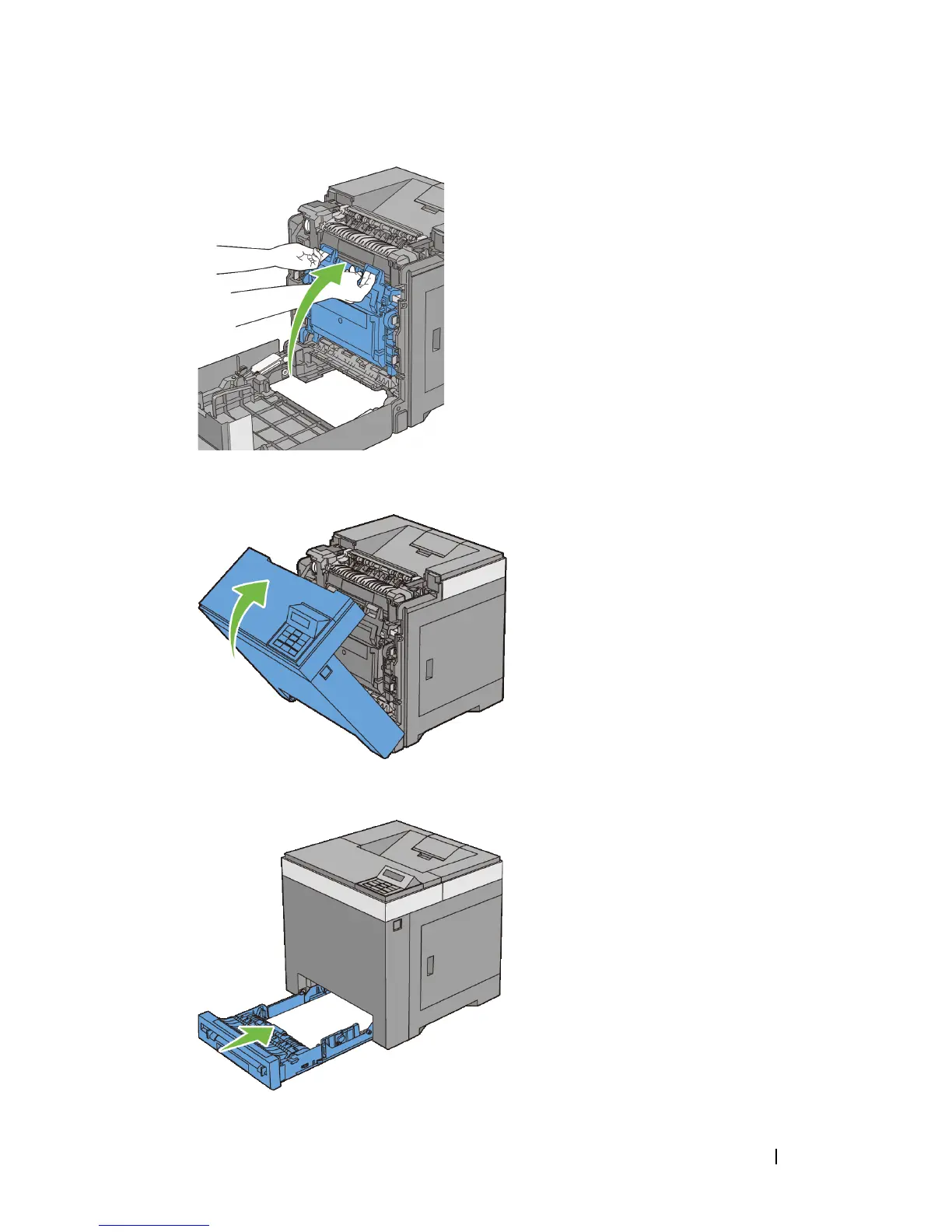

Close the front cover.

Insert the standard 250-sheet tray into the printer, and push until it stops.
