424 Clearing Jams
FILE LOCATION: C:\Users\fxstdpc-
admin\Desktop\0630_UG??\Mioga_SFP_UG_FM\Mioga_SFP_UG_FM\section27.fm
DELL CONFIDENTIAL – PRELIMINARY 9/13/10 - FOR PROOF ONLY
2

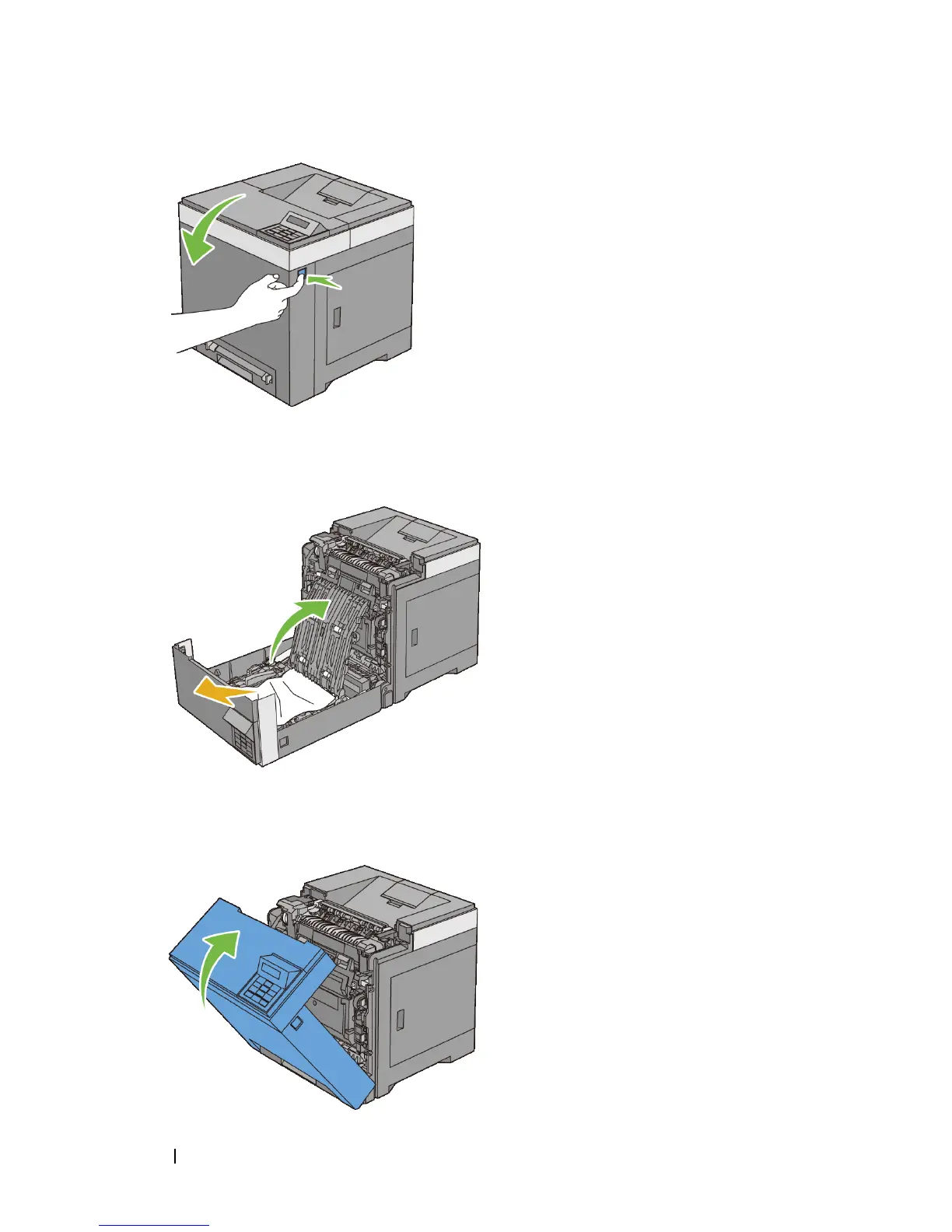

Open the cover of the duplexer.
3
Remove the jammed paper from the duplexer.
4
Close the cover of the duplexer.
5
Close the front cover.
To Next Page
