100 Master I/O Board
Replacing the Master I/O Board
1
Align the screw holes on the master I/O board to the screw holes on the
chassis and place the master I/O board in the chassis.
2
Replace the screws that secure the master I/O board to the chassis.
3
Route and connect the cables that you removed from the connectors on
the master I/O board.
NOTE: For information on master I/O board connectors, see "Master I/O
Board Components" on page 21.
Postrequisites
1
Replace the PCI-fan. See "Replacing the PCI-Fan" on page 54.
2
Replace the drive-bay shroud. See "Replacing the Drive-Bay Shroud" on
page 48.

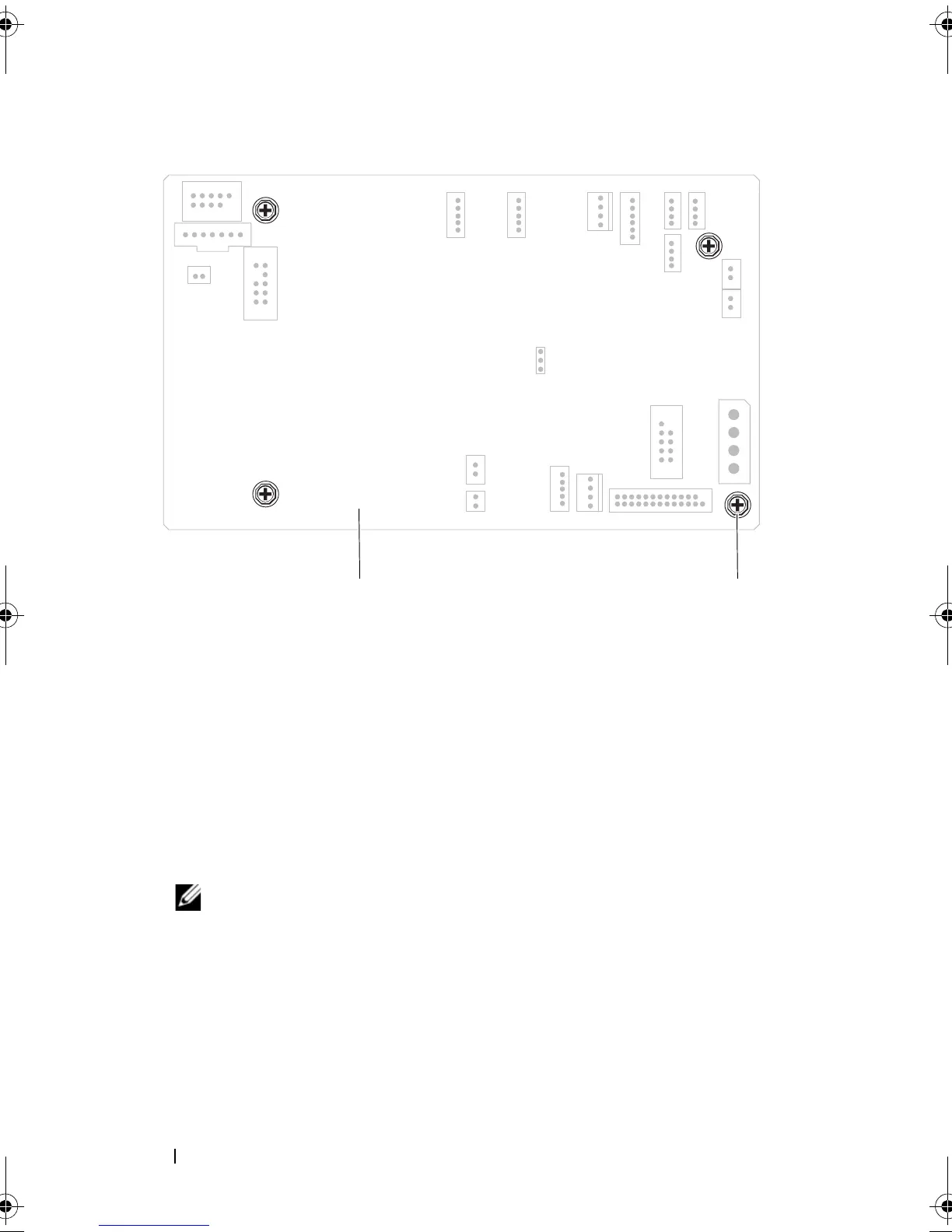

1 master I/O board 2 screws (4)
