Dell Alienware Aurora R4 - Replacing the Graphics Card

58 Graphics Card
Replacing the Graphics Card
1 Align the graphics card with the PCI-Express x16 card connector on the
system board.
2 Place the card in the connector and press down firmly. Ensure that the card
is firmly seated.
3 Replace the screws that secure the graphics card to the chassis.

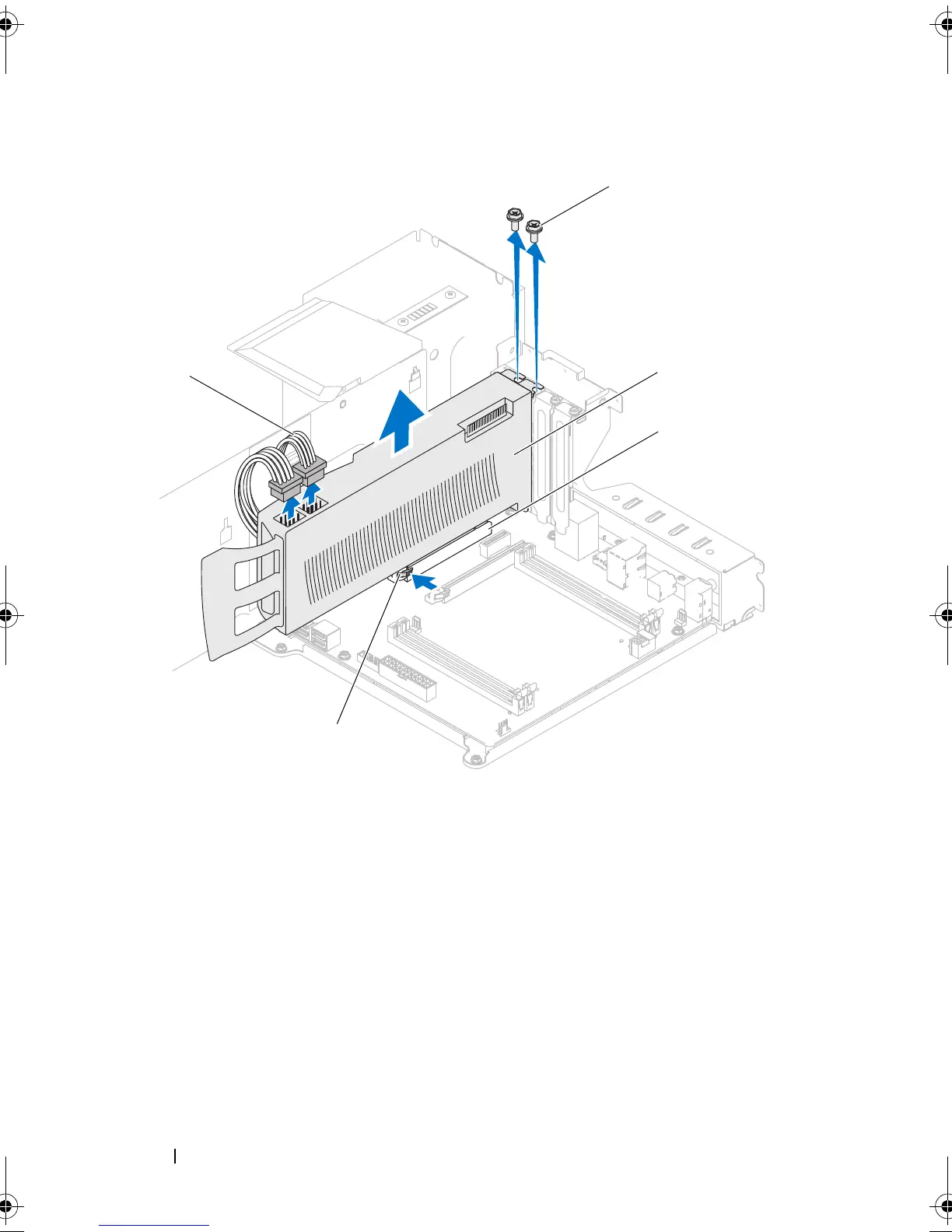

1 screws (2) 2 graphics card
3 PCI-Express x16 connector 4 securing tab
5 power cables (2)
1
3
2
5
4
