Dell Alienware Aurora R4 - Replacing the Hard-Drive Fan Assembly

34 Hard-Drive Fan Assembly
Replacing the Hard-Drive Fan Assembly
1 Slide the hard-drive fan assembly into the hard-drive fan assembly bay.
2 Route the cable through the slot in the hard-drive bay and then connect
the hard-drive fan assembly cable to the FAN_HDD connector on the
master I/O board.
3 Replace the drive-bay shroud. See "Replacing the Drive-Bay Shroud" on
page 48.
4 Close the PCI shroud. See "Closing the PCI Shroud" on page 46.

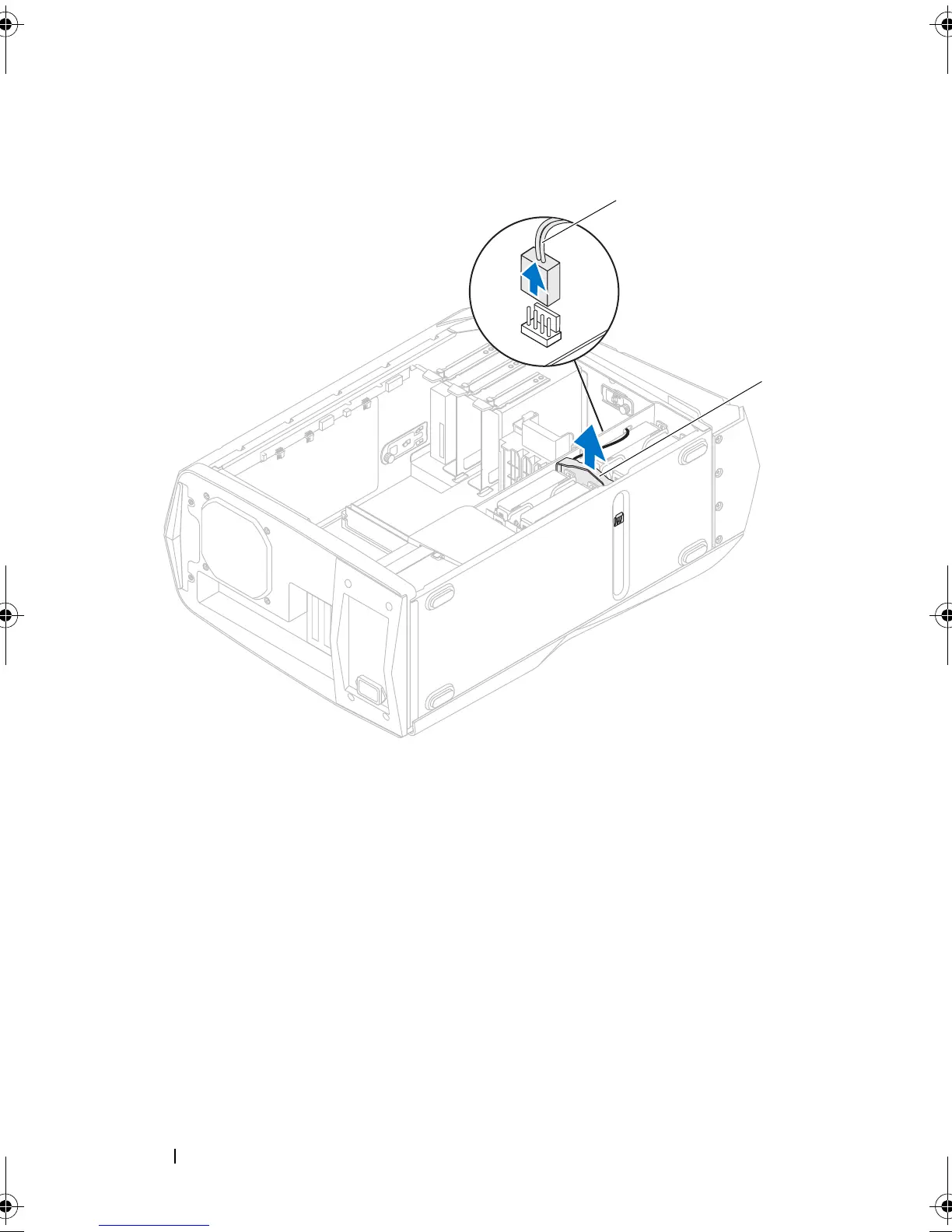

1 hard-drive fan cable 2 hard-drive fan assembly
1
2
