Right-Side Bottom Panel
Replacing the Right-Side Bottom Panel
1
Align the tabs on the right-side bottom panel with the slots on the chassis
and slide the panel into position.
2
Replace the screws that secure the right-side bottom panel to the chassis.

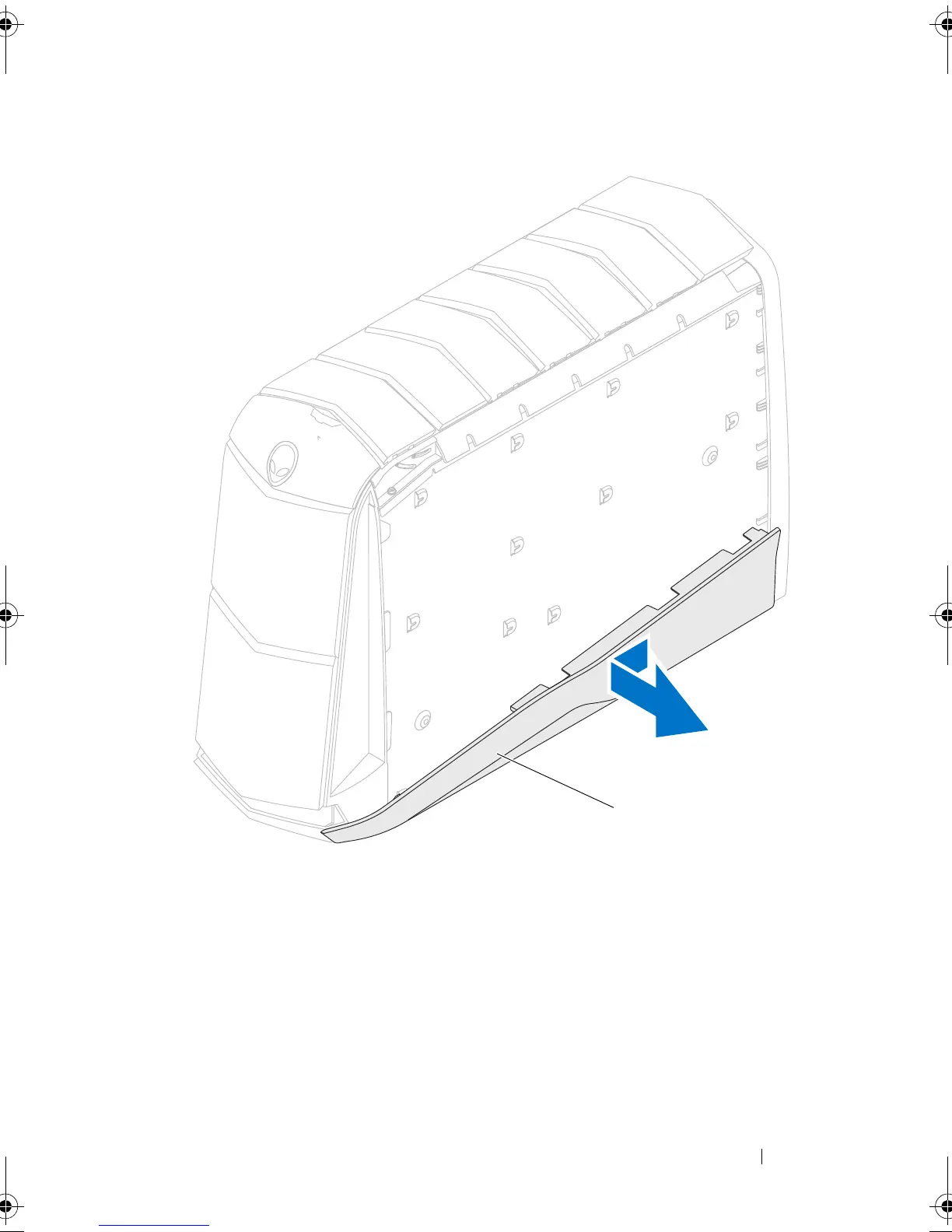

1 right-side bottom panel
