42
Media-Card Reader
5
Remove the scr
ews that secure the me
di
a-
c
a
rd
re
a
de
r
t
o t
h
e
Fl
ex
B
a
y
do
c
k
.
6
Slide the media-card r
eader
out of the FlexBay do
ck.

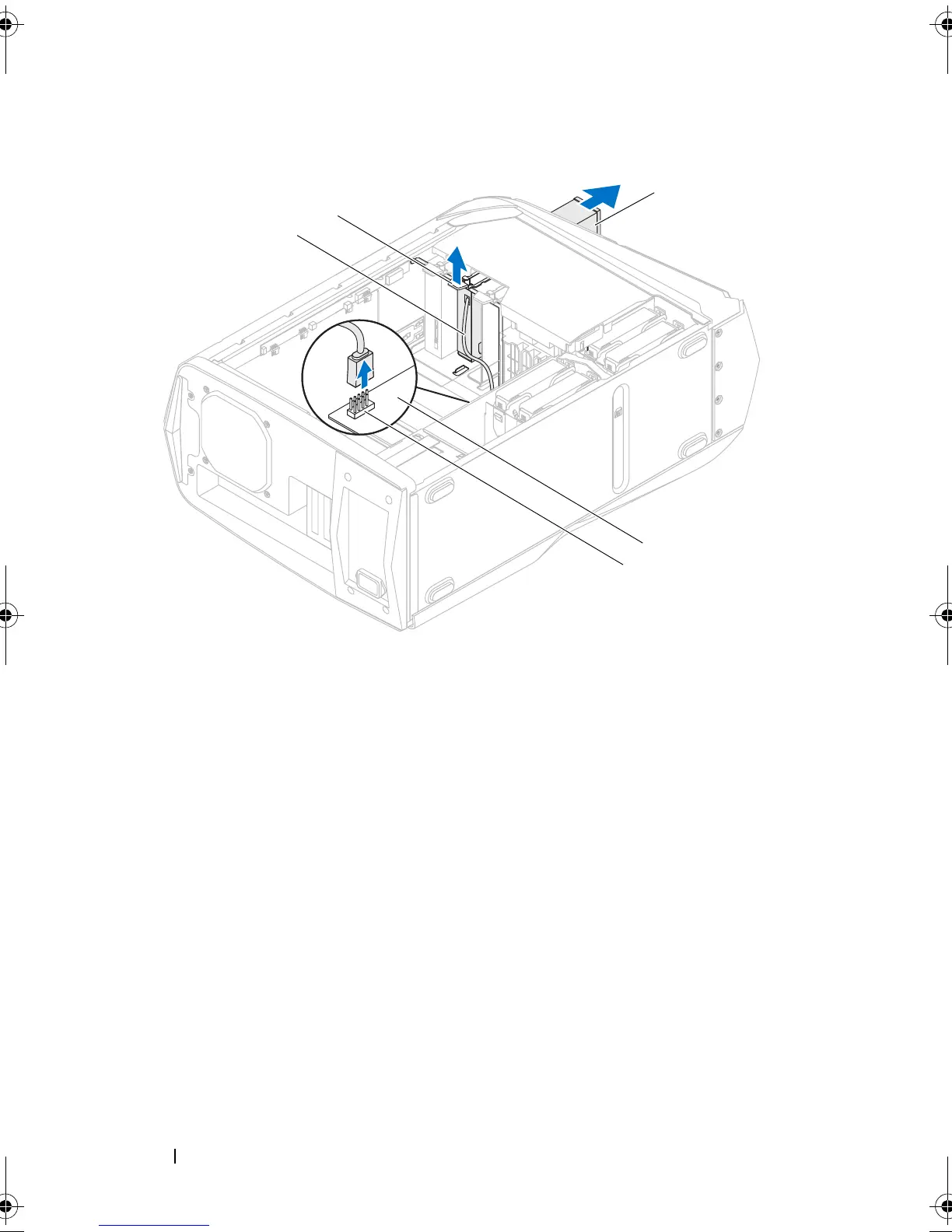

1
FlexBay USB cable
2
s
ecuring tab
3
FlexBay dock
4
Master I/O board
5
FlexBay USB cable-connector
1
2
3
5
4
book
.boo
k Page
42 Wednes
d
ay
, May
16, 2
012 2
:
37
PM
41
43
Table of Contents
Default Chapter
3
Table of Contents
3
1 Before You Begin
13
Turn off Your Computer and Connected Devices
13
Safety Instructions
13
Recommended Tools
14
2 After Working Inside Your Computer
15
3 Technical Overview
17
Front View of Your Computer
17
Back View of Your Computer
18
Inside View of Your Computer
19
System-Board Components
20
Master I/O Board Components
21
Top Lighting-Board Components
23
4 Left Side-Panel
25
Removing the Left Side-Panel
25
Replacing the Left Side-Panel
27
5 Hard Drive(S)
29
Prerequisites
29
Removing the Hard Drive(S)
29
Replacing the Hard Drive(S)
30
Postrequisites
30
6 Hard-Drive Fan Assembly
33
Prerequisites
33
Removing the Hard-Drive Fan Assembly
33
Replacing the Hard-Drive Fan Assembly
34
Postrequisites
35
7 Optical Drive(S)
37
Prerequisites
37
Removing the Optical Drive(S)
37
Replacing the Optical Drive(S)
38
Postrequisites
38
8 Media-Card Reader
41
Prerequisites
41
Removing the Media-Card Reader
41
Replacing the Media-Card Reader
43
Postrequisites
44
9 PCI Shroud
45
Prerequisites
45
Opening the PCI Shroud
45
Closing the PCI Shroud
46
Postrequisites
46
10 Drive-Bay Shroud
47
Prerequisites
47
Removing the Drive-Bay Shroud
47
Replacing the Drive-Bay Shroud
48
Postrequisites
48
11 PCI-Express X1 Card
49
Prerequisites
49
Removing the PCI-Express X1 Card
49
Replacing the PCI-Express X1 Card
50
Postrequisites
51
12 PCI-Fan
53
Prerequisites
53
Removing the PCI-Fan
53
Replacing the PCI-Fan
54
Postrequisites
55
13 Graphics Card
57
Prerequisites
57
Removing the Graphics Card
57
Replacing the Graphics Card
58
Postrequisites
59
Installing Dual Graphic Cards
59
Connect the Display
61
14 Memory Module(S)
63
Prerequisites
63
Removing Memory Module(S)
63
Replacing Memory Module(S)
64
Postrequisites
66
15 Memory Fan
67
Prerequisites
67
Removing the Memory Fan
67
Replacing the Memory Fan
68
Postrequisites
68
16 Processor Liquid-Cooling Assembly
71
Prerequisites
71
Removing the Processor Liquid-Cooling Assembly
71
Replacing the Processor Liquid-Cooling Assembly
72
Postrequisites
73
17 Processor
75
Prerequisites
75
Removing the Processor
75
Replacing the Processor
78
Postrequisites
80
18 Power-Supply Unit
83
Prerequisites
83
Removing the Power-Supply Unit
83
Replacing the Power-Supply Unit
86
Postrequisites
87
19 Coin-Cell Battery
89
Prerequisites
89
Removing the Coin-Cell Battery
89
Replacing the Coin-Cell Battery
90
Postrequisites
90
20 Theater-Lighting Batteries
93
(ALX Chassis Only)
93
Prerequisites
93
Removing the Theater-Lighting Batteries
93
Replacing the Theater-Lighting Batteries
94
Postrequisites
94
21 System-Board Assembly
95
Prerequisites
95
Removing the System-Board Assembly
95
Replacing the System-Board Assembly
96
Postrequisites
97
Entering the Service Tag in BIOS
97
22 Master I/O Board
99
Prerequisites
99
Removing the Master I/O Board
99
Replacing the Master I/O Board
100
Postrequisites
100
23 Top Lighting-Board
103
Prerequisites
103
Removing the Top Lighting-Board
103
Replacing the Top Lighting-Board
104
Postrequisites
104
24 Right-Side Top Panel
107
Prerequisites
107
Removing the Right-Side Top Panel
107
Replacing the Right-Side Top Panel
110
Postrequisites
111
25 Right-Side Middle Panel
113
Prerequisites
113
Removing the Right-Side Middle Panel
113
Replacing the Right-Side Middle Panel
114
Postrequisites
115
26 Right Lighting-Board
117
Prerequisites
117
Removing the Right Lighting-Board
117
Replacing the Right Lighting-Board
118
Postrequisites
119
27 Right-Side Bottom Panel
121
Prerequisites
121
Removing the Right-Side Bottom Panel
121
Replacing the Right-Side Bottom Panel
123
Postrequisites
124
28 Top Vent
125
Prerequisites
125
Removing the Top Vent
125
Replacing the Top Vent
127
Postrequisites
128
29 Front Bezel
129
Prerequisites
129
Removing the Front Bezel
129
Replacing the Front Bezel
131
Postrequisites
132
30 Back Bezel
133
Prerequisites
133
Removing the Back Bezel
133
Replacing the Back Bezel
136
Postrequisites
136
31 Wifi/Bluetooth Assembly
137
Prerequisites
137
Removing the Wifi/Bluetooth Card
137
Replacing the Wifi/Bluetooth Card
138
Postrequisites
138
32 Top I/O Panel
141
Prerequisites
141
Removing the Top I/O Panel
141
Replacing the Top I/O Panel
142
Postrequisites
143
33 System Setup
145
Overview
145
Entering System Setup
145
System Setup Screens
145
System Setup Options
146
Security Menu
151
Boot Sequence
152
Boot/Exit Menu
152
Clearing Forgotten Passwords
154
Password
155
Clearing CMOS Passwords
156
Cmos
156
34 Flashing the BIOS
159
35 Specifications
161
