60 Graphics Card
7 Close the PCI shroud. See "Closing the PCI Shroud" on page 46.
8 Replace the left side-panel. See "Replacing the Left Side-Panel" on
page 27.
9 Follow the steps in "After Working Inside Your Computer" on page 15.

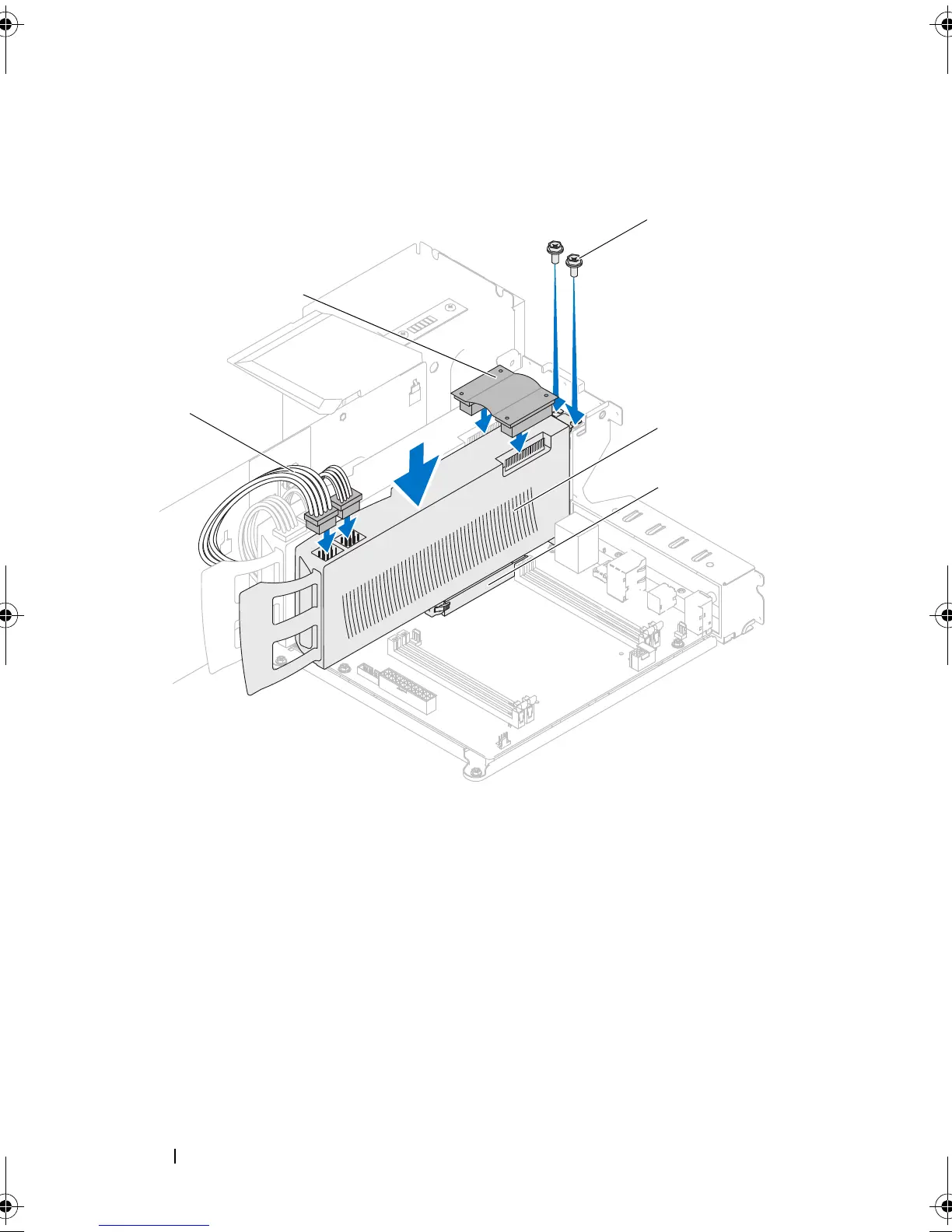

1 power cables (2) 2 Dual graphics bridge
3 screws (2) 4 PCI-Express x16 card
5 PCI-Express x16 connector
