Processor 77
CAUTION: When removing the processor, do not touch any of the pins inside the
socket or allow any objects to fall on the pins in the socket.
4
Open the processor cover and gently lift the processor from the processor
socket.

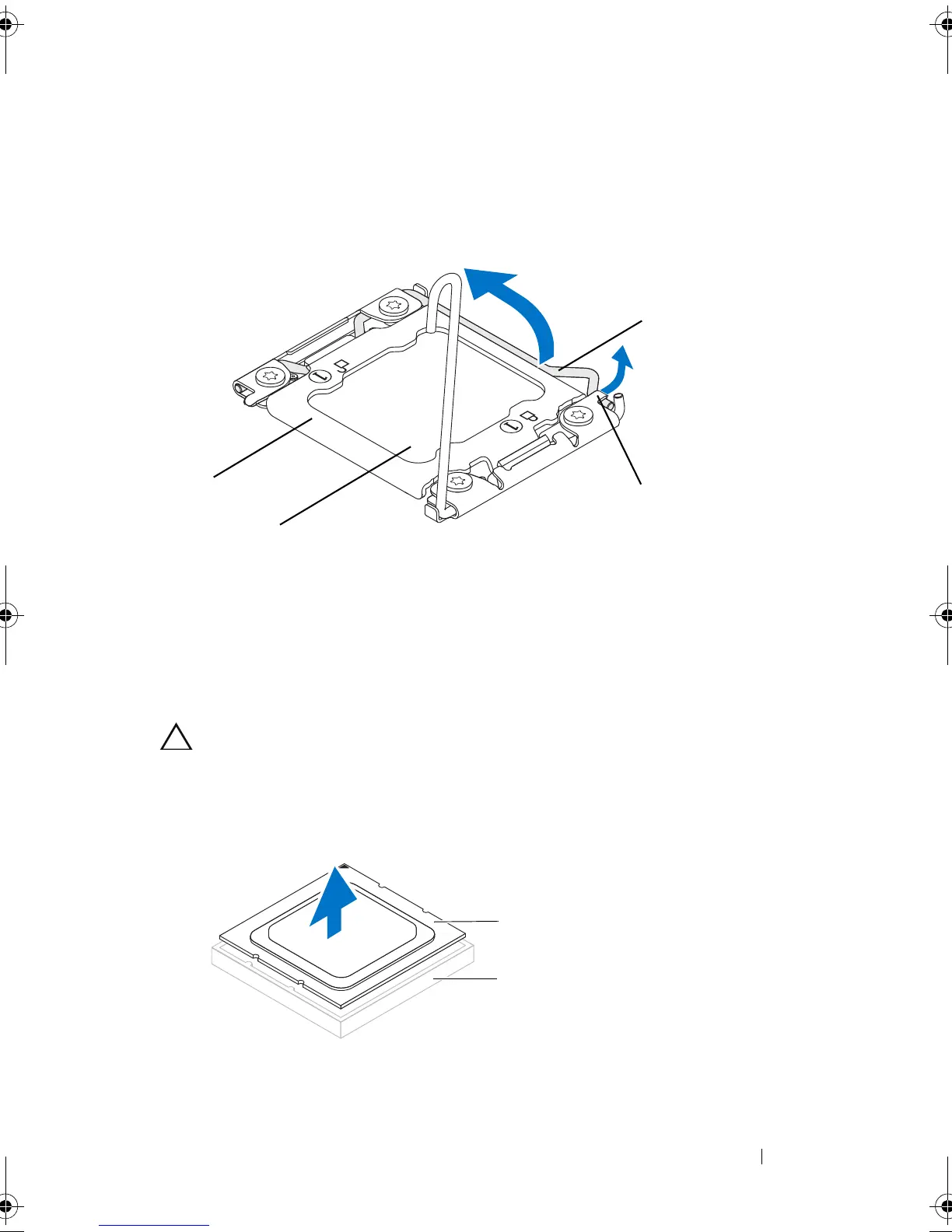

1 processor cover 2 processor
3 securing tab 4 release lever
1 processor 2 processor socket
