Steps

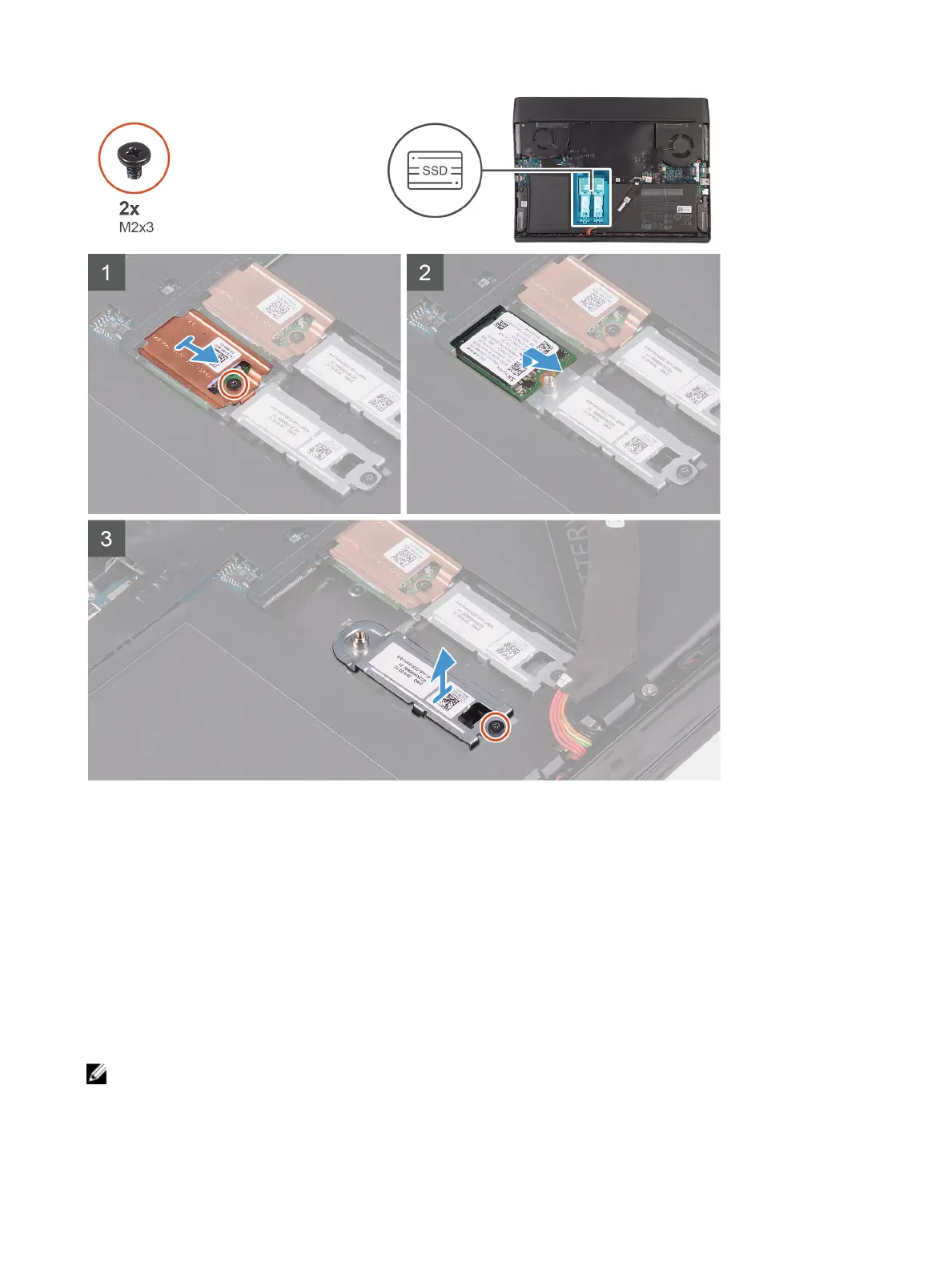

1 Remove the screw (M2x3) that secures the M.2 thermal shield to the mounting bracket.
2 Remove the M.2 2230 thermal shield from the M.2 2230 solid-state drive.
3 Lift and remove the M.2 2230 solid-state drive from the M.2 card slot on the system board.
4 Remove the screw (M2x3) that secures the M.2 2230 mounting bracket to the palm-rest assembly.
5 Remove the M.2 2230 mounting bracket from the palm-rest assembly.
Installing the M.2 2230 solid-state drive
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: This procedure applies if you are installing a M.2 2230 solid-state drive.
