2 Slide the M.2 2280 solid-state drive into the M.2 card slot on the system board.
3 Slide and align the screw hole of the M.2 thermal shield with the screw hole on the palm-rest assembly.
NOTE: This step is only applicable when installing a PCIe M.2 card.
4 Replace the screw (M2x3) that secures the M.2 2280 solid-state drive to the palm-rest assembly.
Next step
1 Install the base cover.
2 Follow the procedure in After working inside your computer.
Rear-I/O cover
Removing the rear I/O-cover
Prerequisite
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
About this task

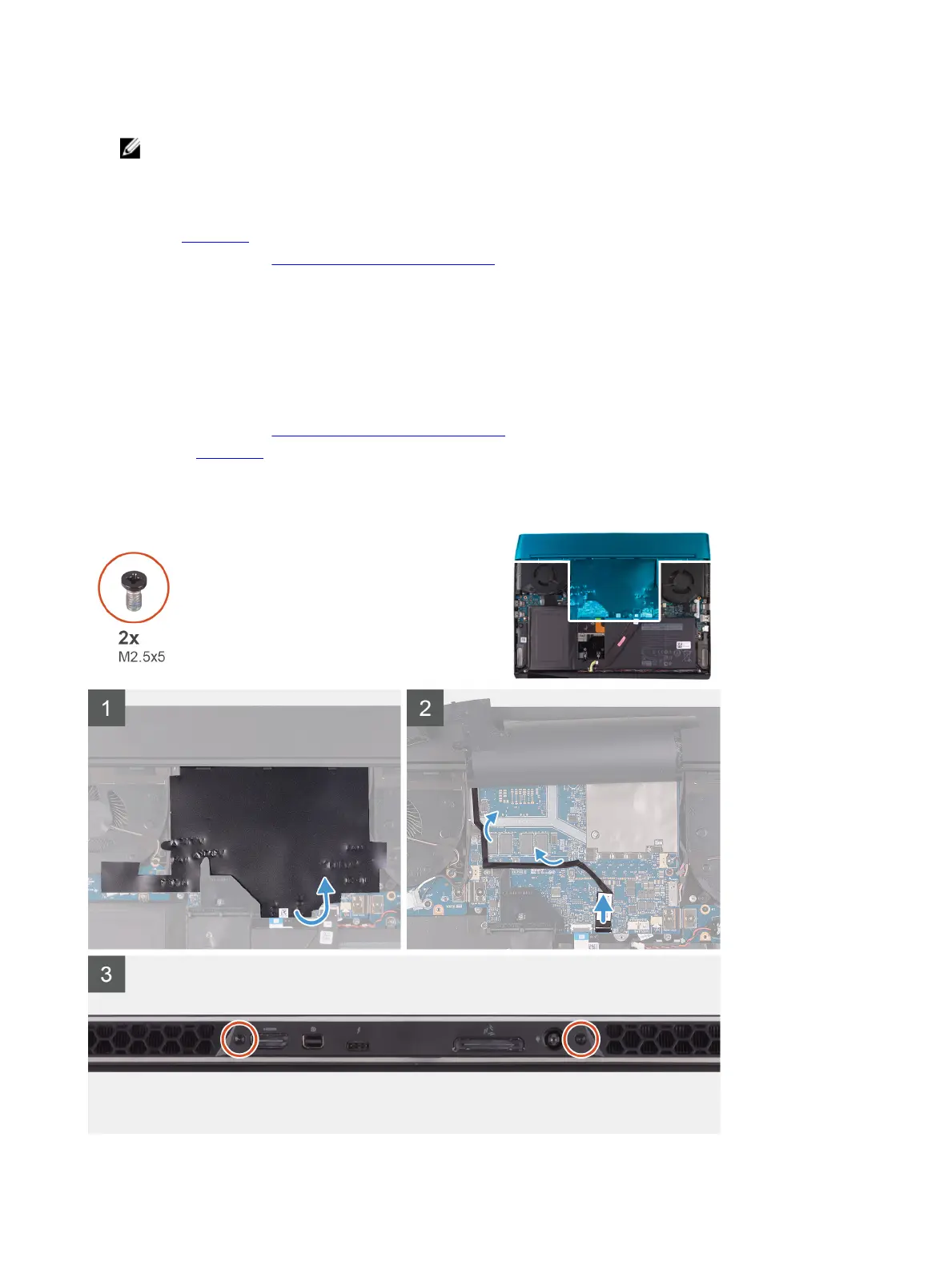

The following image indicates the location of the rear I/O-cover and provides a visual representation of the removal procedure.
18
