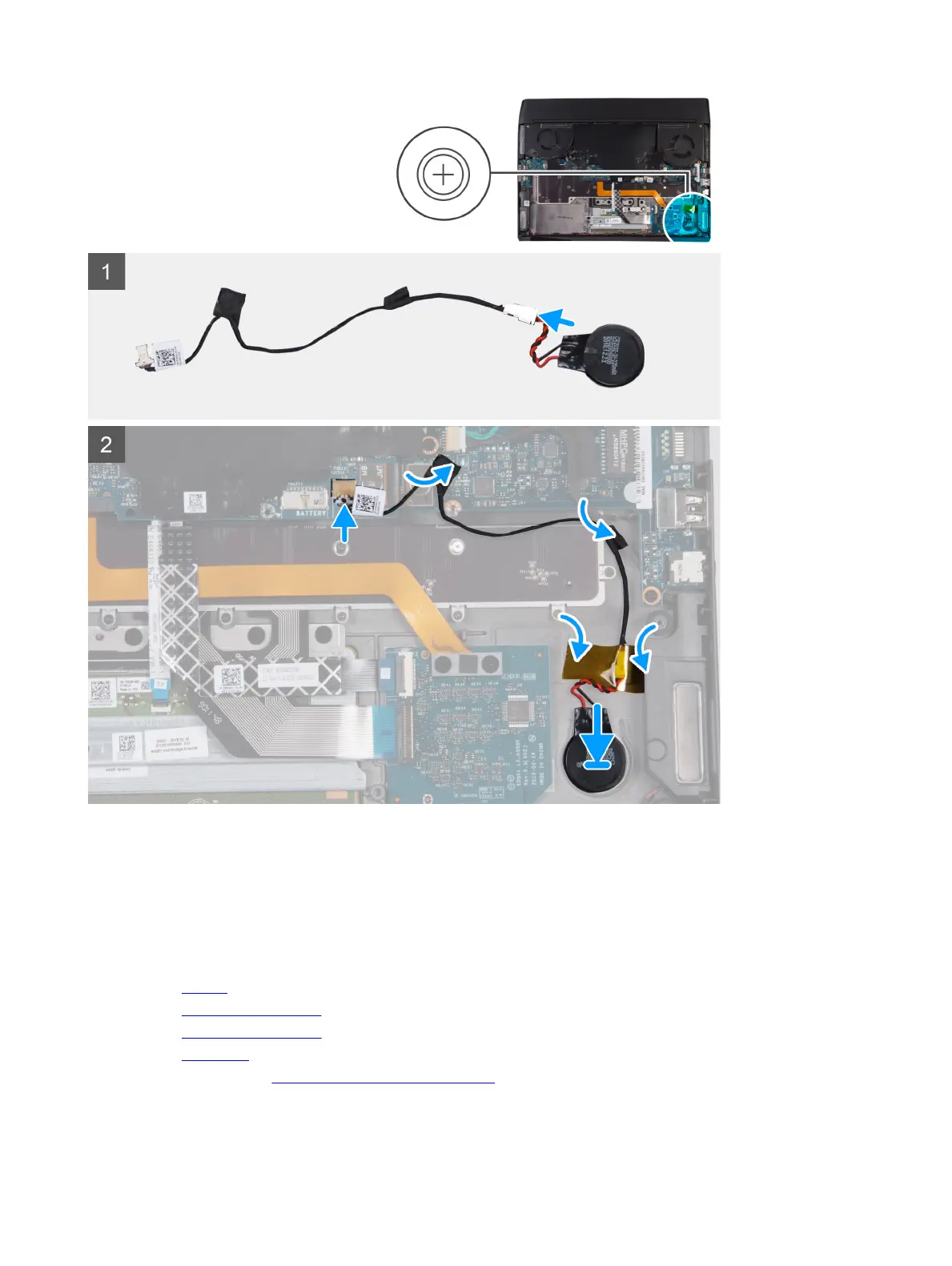

Steps
1 Connect the coin-cell battery to the coin-cell battery cable.
2 Adhere the coin-cell battery into its slot on the palm-rest assembly.
3 Adhere the tapes securing the coin-cell battery cable to the right I/O-board and palm-rest assembly.
4 Connect the coin-cell battery cable to the connector on the system board.
Next steps
1 Install the battery.
2 Install the 2230 solid-state drive. (if applicable)
3 Install the 2280 solid-state drive. (if applicable)
4 Install the base cover.
5 Follow the procedure in After working inside your computer.
Keyboard-controller board
29
