Next steps
1 Install the system board. (only applicable when the touchpad cable has been replaced)
2 Install the right I/O-board. (only applicable when the touchpad cable has been replaced)
3 Install the battery.
4 Install the rear I/O-cover.
5 Install the 2230 solid-state drive. (if applicable)
6 Install the 2280 solid-state drive. (if applicable)
7 Install the base cover.
8 Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the 2230 solid-state drive. (if applicable)
4 Remove the 2280 solid-state drive. (if applicable)
5 Remove the rear I/O-cover.
6 Remove the battery.
7 Remove the right I/O-board.
8 Remove the system board.
About this task

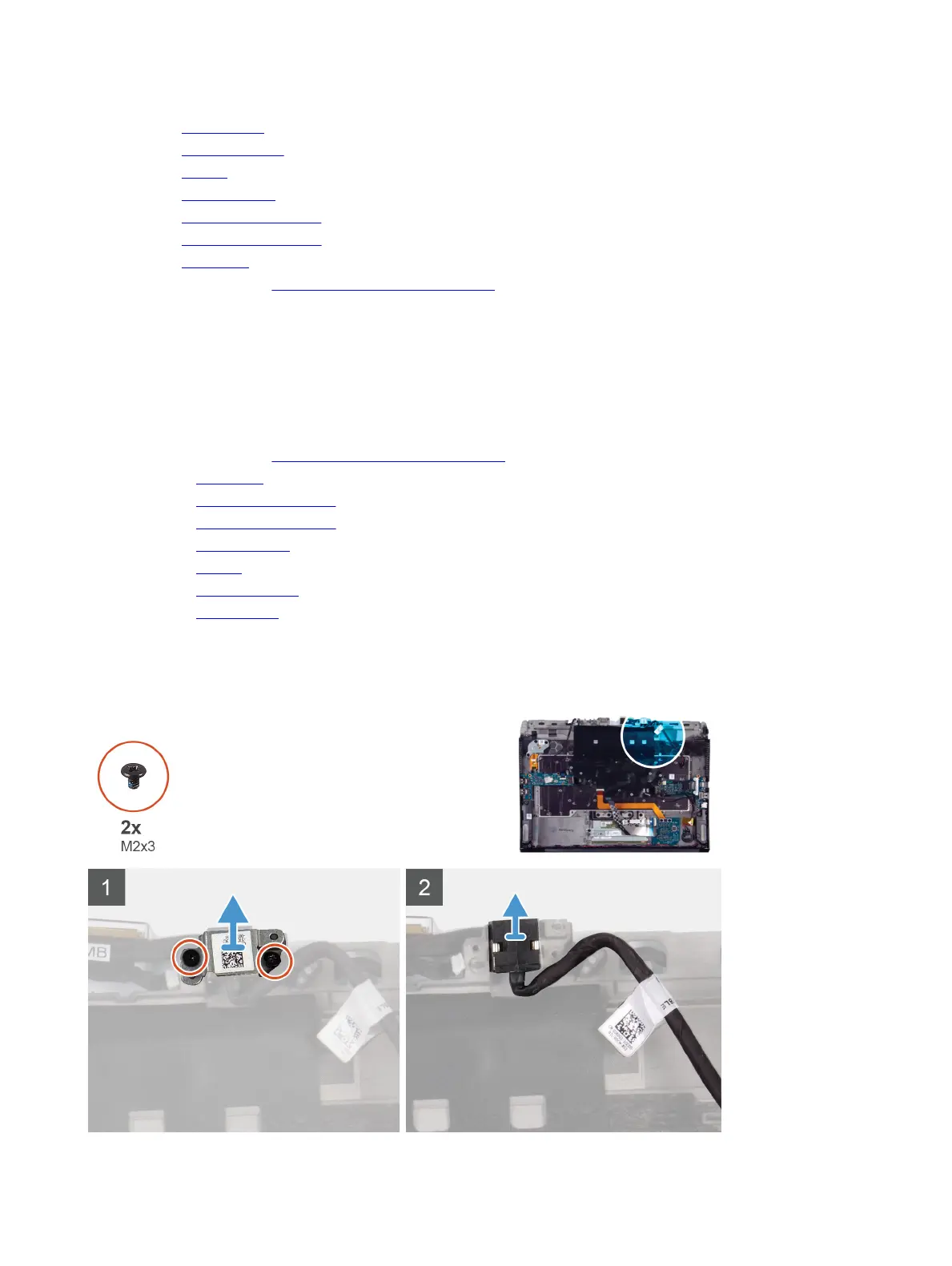

The following image indicates the location of the power-adapter port and provides a visual representation of the removal
procedure.
