Steps
1 Remove the two (M2x1.9) screws that secure the keyboard-backlight cable to the keyboard-controller board.
2 Disconnect the keyboard-backlight cable from the keyboard-controller board.
3 Lift the latch and disconnect the keyboard cable from the keyboard-controller board.
4 Remove the nine (M1.2x2.1) screws that secure the keyboard bracket to the keyboard.
5 Lift the keyboard bracket o the keyboard.
6 Remove the 33 (M1.2x1.6) screws that secure the keyboard to the palm-rest assembly.
7 Lift the keyboard o the palm-rest assembly.
Installing the keyboard
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

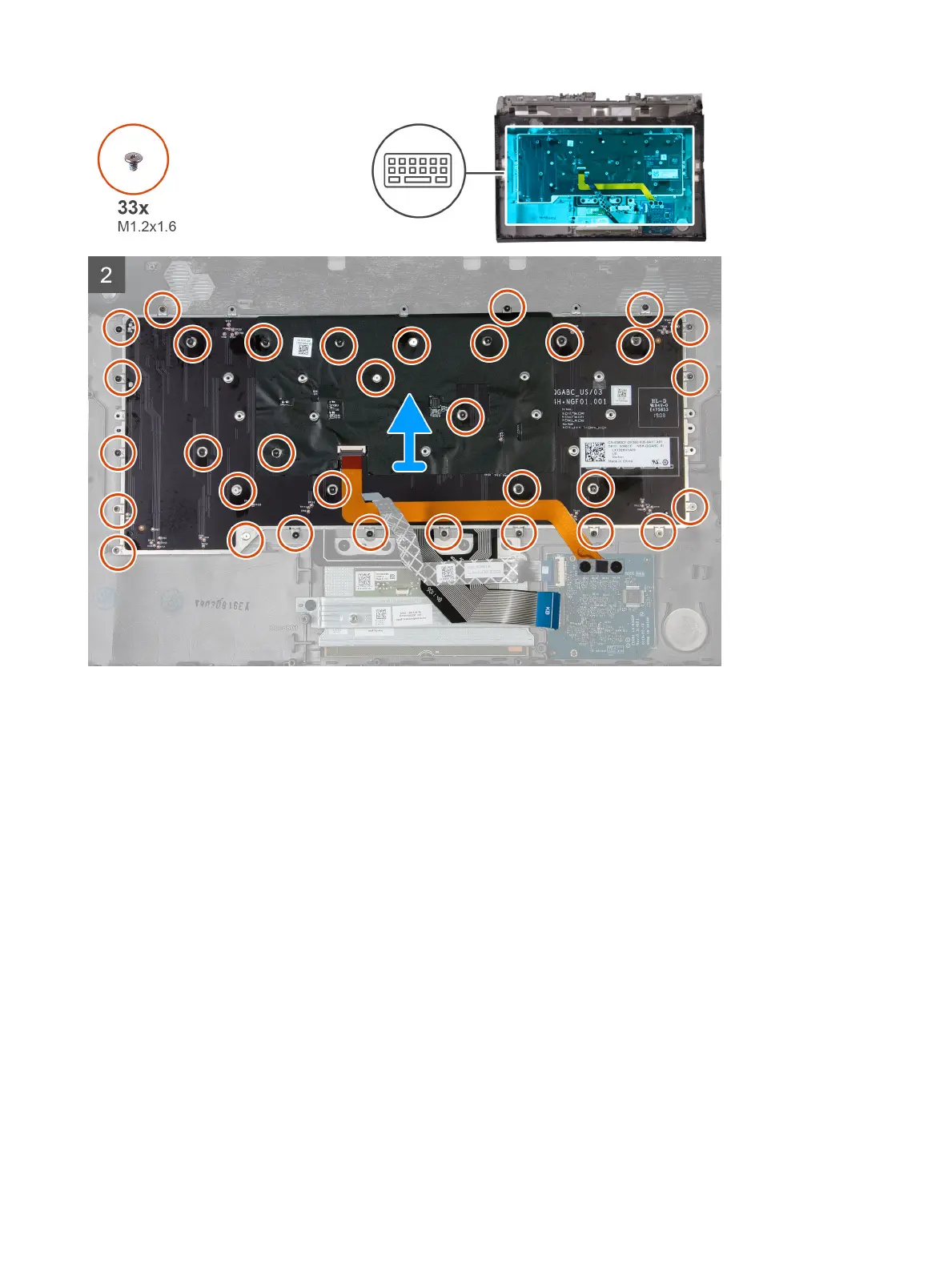

The following image indicates the location of the keyboard and provides a visual representation of the installation procedure.
