3 Remove the 2230 solid-state drive. (if applicable)
4 Remove the 2280 solid-state drive. (if applicable)
5 Remove the rear I/O-cover.
6 Remove the battery.
7 Remove the left I/O-board.
8 Remove the right I/O-board.
9 Remove the system board.
10 Remove the power-button assembly.
About this task

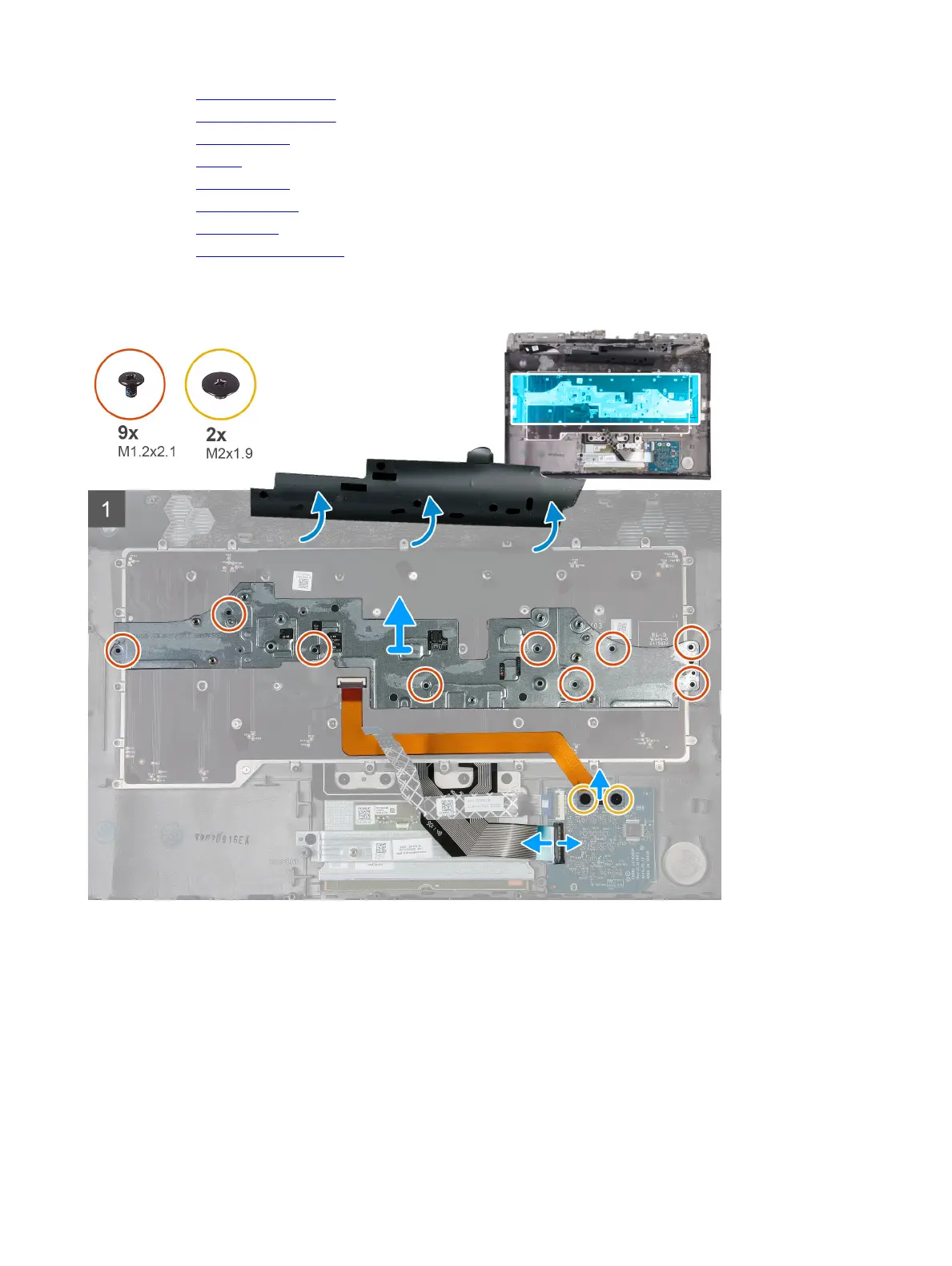

The following image indicates the location of the keyboard and provides a visual representation of the removal procedure.
54
