11 Remove the following cables from the routing guides on the palm-rest assembly.
– Display cable
– G-sensor cable
– Tobii eye tracker cable
– Antenna cables
12 Remove the six screws (M2.5x5) securing the display assembly to the palm-rest assembly.
13 Gently lift the display assembly from the palm-rest assembly.
Installing the display assembly
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
NOTE: The display assembly is a Hinge-up Display (HUD) and cannot be further disassembled. If components within
the display assembly need to be replaced, the entire display assembly is to be replaced.

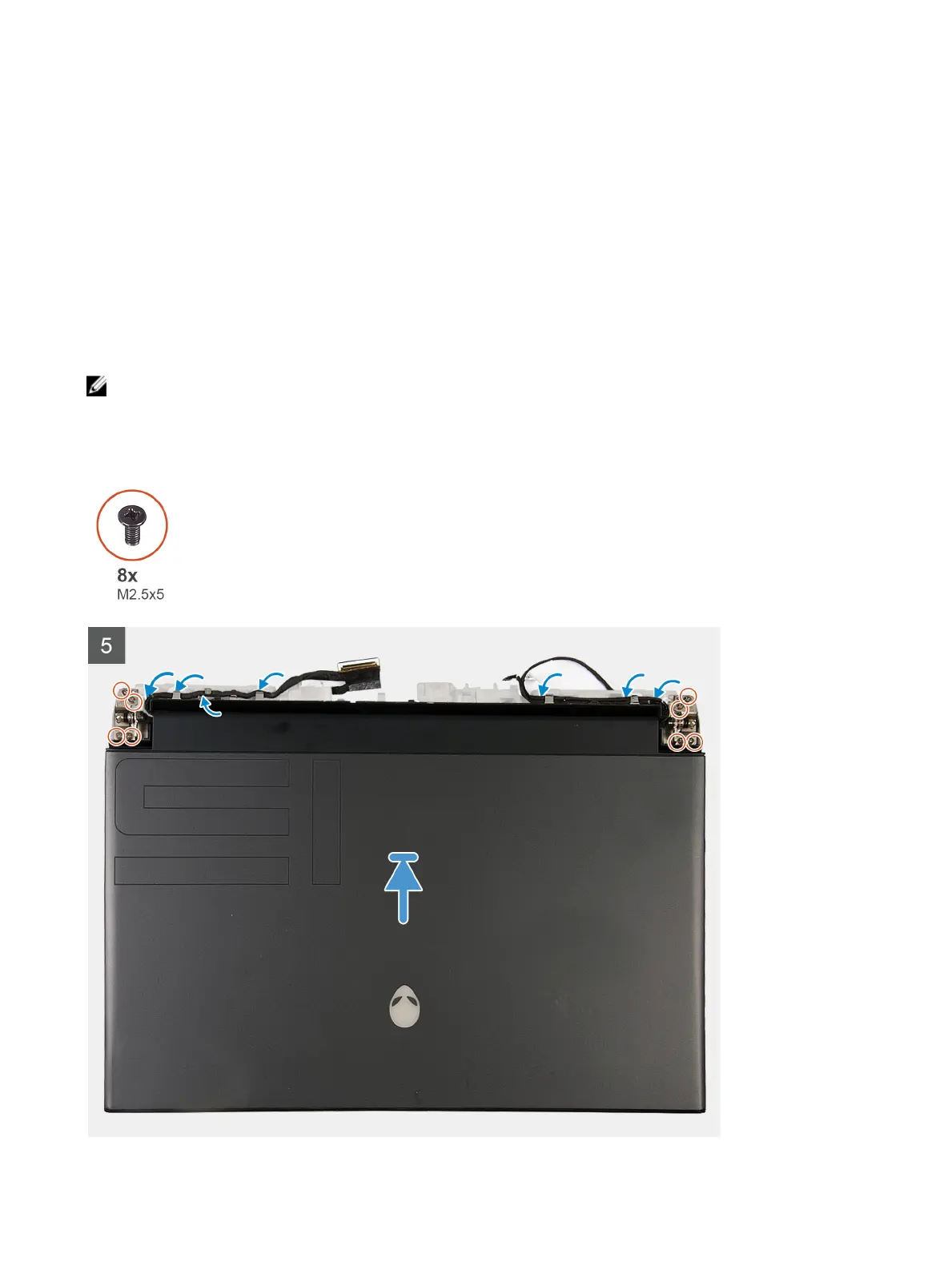

The following image indicates the location of the display assembly and provides a visual representation of the installation
procedure.
23
