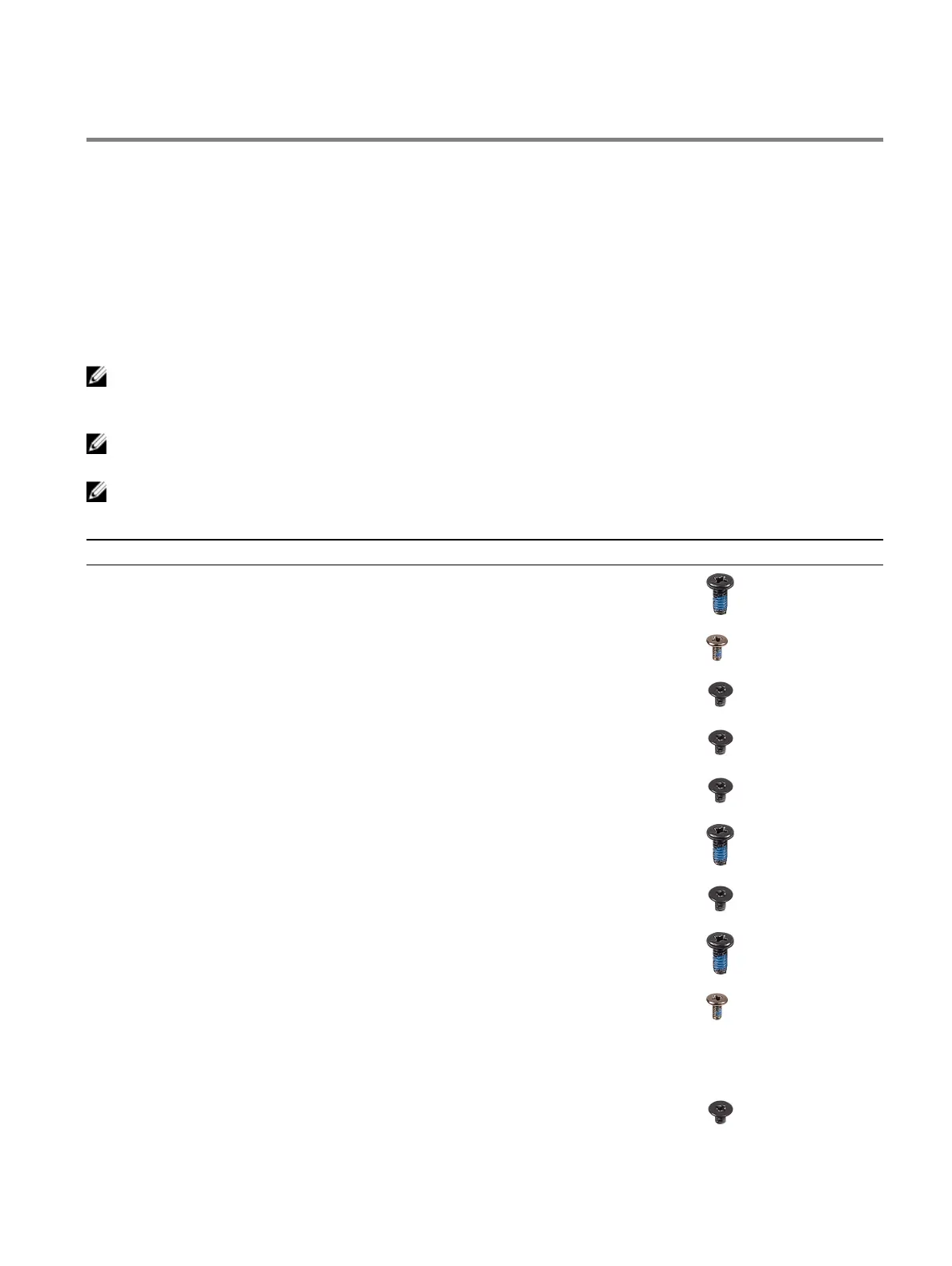

Removing and installing components
Recommended tools
The procedures in this document may require the following tools:
Philips screwdriver #1
Flat-head screwdriver
Plastic scribe
Screw list
NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws,
and then place them in a screw storage box. This is to ensure that the correct number of screws and correct screw
type is restored when the component is replaced.
NOTE: Some computers have magnetic surfaces. Ensure that the screws are not left attached to such surface when
replacing a component.
NOTE: Screw color may vary with the conguration ordered.
Table 1. Screw list
Component Secured to Screw type Quantity Screw image
Base cover Palm-rest assembly M2.5x5 2
M.2 connector shield System board M2x4.5 1
M.2 2230 solid-state
drive
M.2 2230 mounting
bracket
M2x3 1 per M.2 2230 solid-
state drive
M.2 2230 mounting
bracket
Palm-rest assembly M2x3 1 per M.2 2230 solid-
state drive
M.2 2280 solid-state
drive
Palm-rest assembly M2x3 1 per M.2 2280 solid-
state drive
Back cover Palm-rest assembly M2.5x5 2
Wireless-card bracket Left I/O-board M2x3 1
Display assembly Palm-rest assembly M2.5x5 6
Battery
Palm-rest assembly
System board
Left I/O-board
Right I/O-board
M2x4.5 6
Keyboard-backlight
cable
Keyboard-controller
board
M2x1.9 2
8
