Next step
1 Install the system board.
2 Install the right I/O-board.
3 Install the battery.
4 Install the rear I/O-cover.
5 Install the 2230 solid-state drive. (if applicable)
6 Install the 2280 solid-state drive. (if applicable)
7 Install the base cover.
8 Follow the procedure in After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the 2230 solid-state drive. (if applicable)
4 Remove the 2280 solid-state drive. (if applicable)
5 Remove the rear I/O-cover.
6 Remove the battery.
7 Remove the right I/O-board.(only applicable when the touchpad cable needs to be removed)
8 Remove the system board. (only applicable when the touchpad cable needs to be removed)
About this task

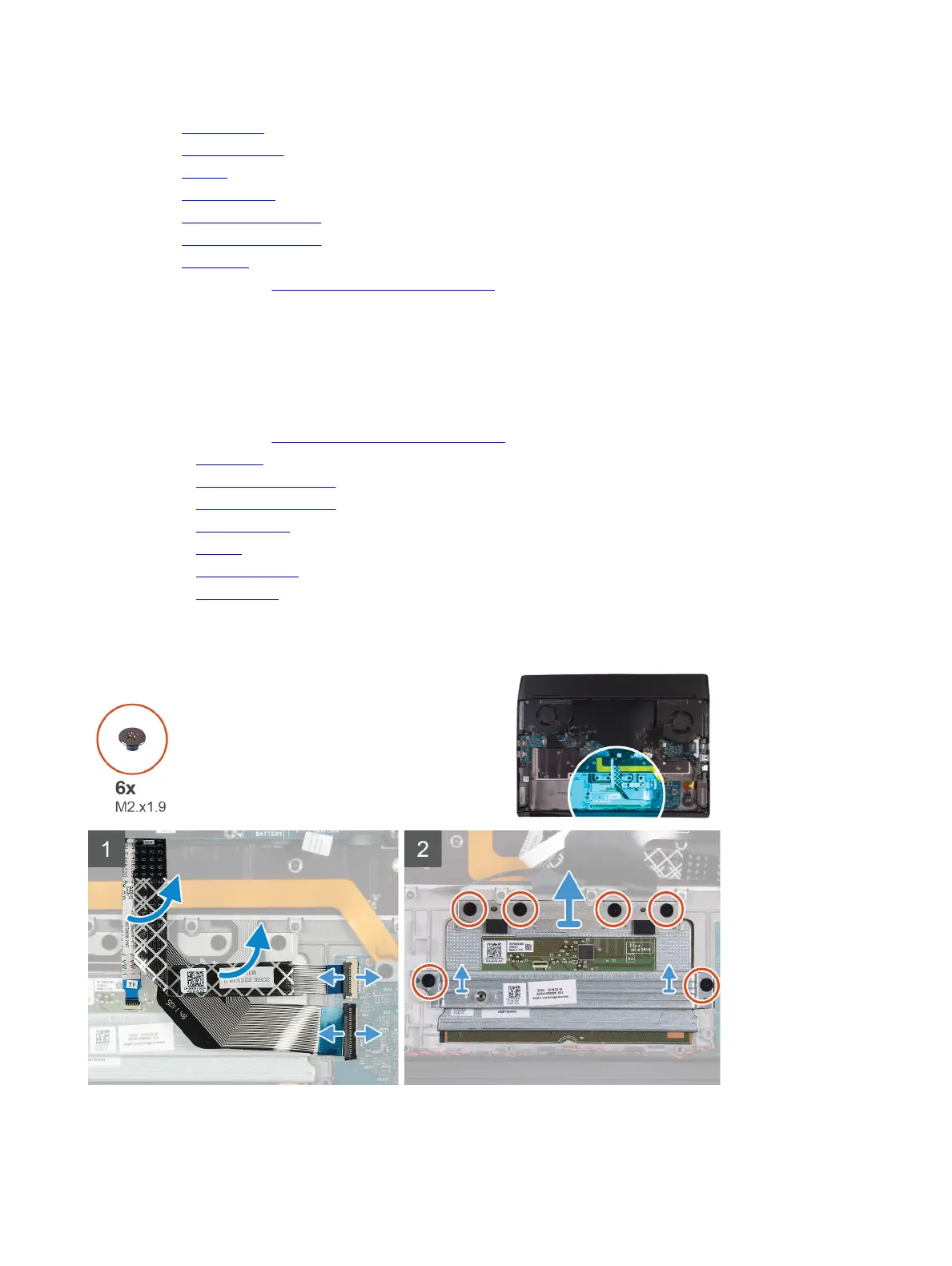

The following image indicates the location of the touchpad and provides a visual representation of the removal procedure.
Steps
1 Open the latch and disconnect the keyboard-controller board-cable from keyboard-controller board.
