Dell Alienware m15 R2 - Installing the Right I;O-Board

Steps

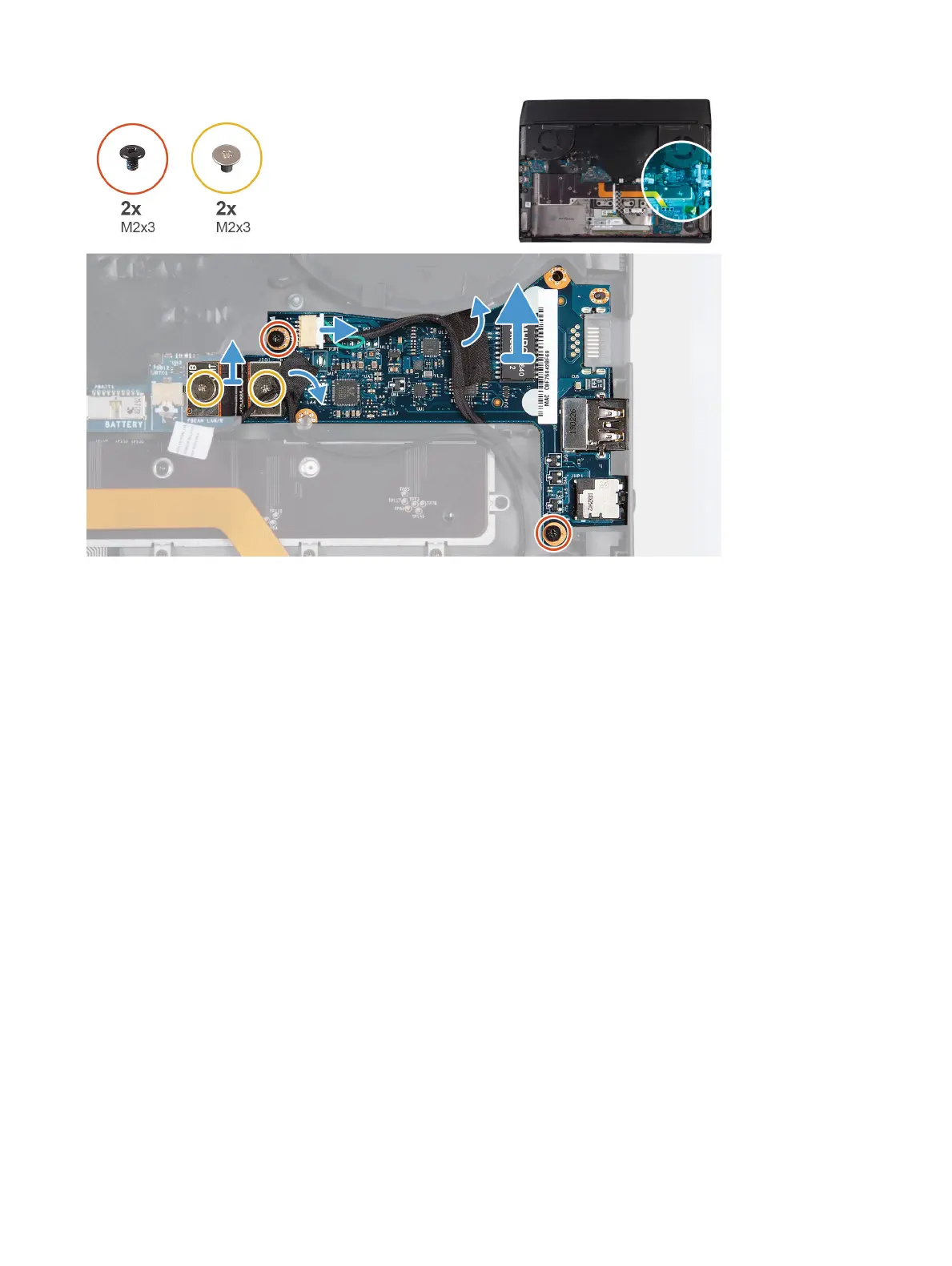

1 Remove the two screws (M2x3) that secure the right I/O-board cable connecting the right I/O-board and the system
board.
2 Lift the right I/O-board cable o the right I/O-board and system board.
3 Disconnect the speaker cable from the right I/O-board.
4 Peel the tape securing the coin-cell battery cable to the right I/O-board.
5 Remove the two screws (M2x3) that secure the right I/O-board to the palm-rest assembly.
6 Lift the right I/O-board o the palm-rest assembly.
Installing the right I/O-board
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the right I/O-board and provides a visual representation of the installation
procedure.
35
