Steps

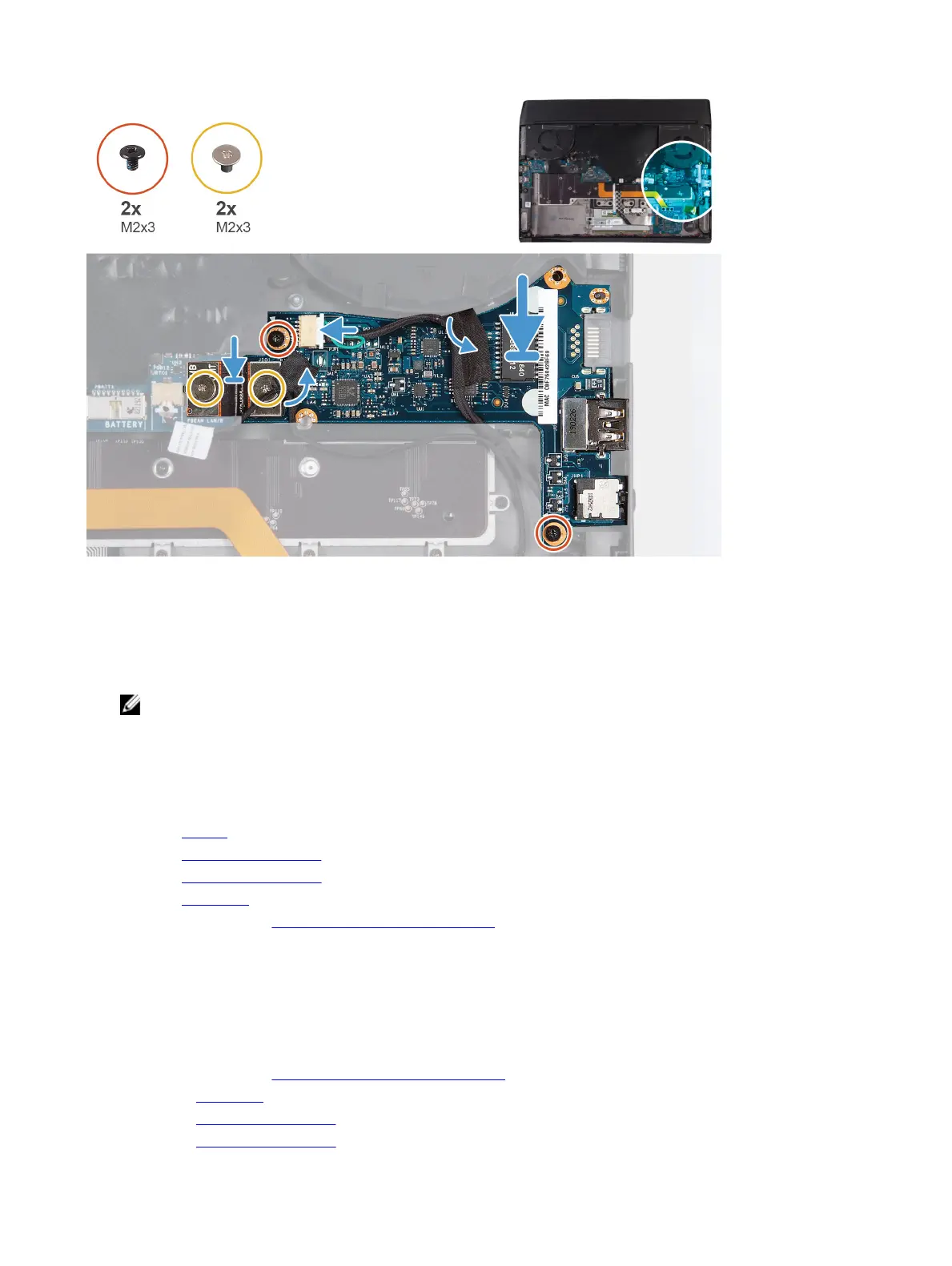

1 Using the alignment posts, place the right I/O-board in place on the palm-rest assembly.
2 Replace the two screws (M2x3) that secure the right I/O-board to the palm-rest asssembly.
3 Connect the speaker cable to the connector on the right I/O-board.
4 Using the alignment pins, connect the right I/O-board cable on the right I/O-board and the system board.
NOTE: The I/O-board cable is polarity sensitive. To prevent damage to your computer ensure that the MB UMT
end of the cable is connected to the system board.
5 Replace the two screws (M2x3) that secure the right I/O-board cable to the right I/O-board and system board.
6 Adhere the tape securing the coin-cell battery cable to the right I/O-board.
Next step
1 Install the battery.
2 Install the 2230 solid-state drive. (if applicable)
3 Install the 2280 solid-state drive. (if applicable)
4 Install the base cover.
5 Follow the procedure in After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the 2230 solid-state drive. (if applicable)
4 Remove the 2280 solid-state drive. (if applicable)
36
