Palm rest
Removing the palm rest
Prerequisites
1 Follow the procedure in Before working inside your computer.
2 Remove the base cover.
3 Remove the 2230 solid-state drive. (if applicable)
4 Remove the 2280 solid-state drive. (if applicable)
5 Remove the rear I/O-cover.
6 Remove the battery.
7 Remove the display assembly.
8 Remove the coin-cell battery.
9 Remove the keyboard-controller board.
10 Remove the left I/O-board.
11 Remove the right I/O-board.
12 Remove the speakers.
13 Remove the system board.
14 Remove the touchpad.
15 Remove the power-adapter port.
16 Remove the power-button assembly.
17 Remove the keyboard.
Step

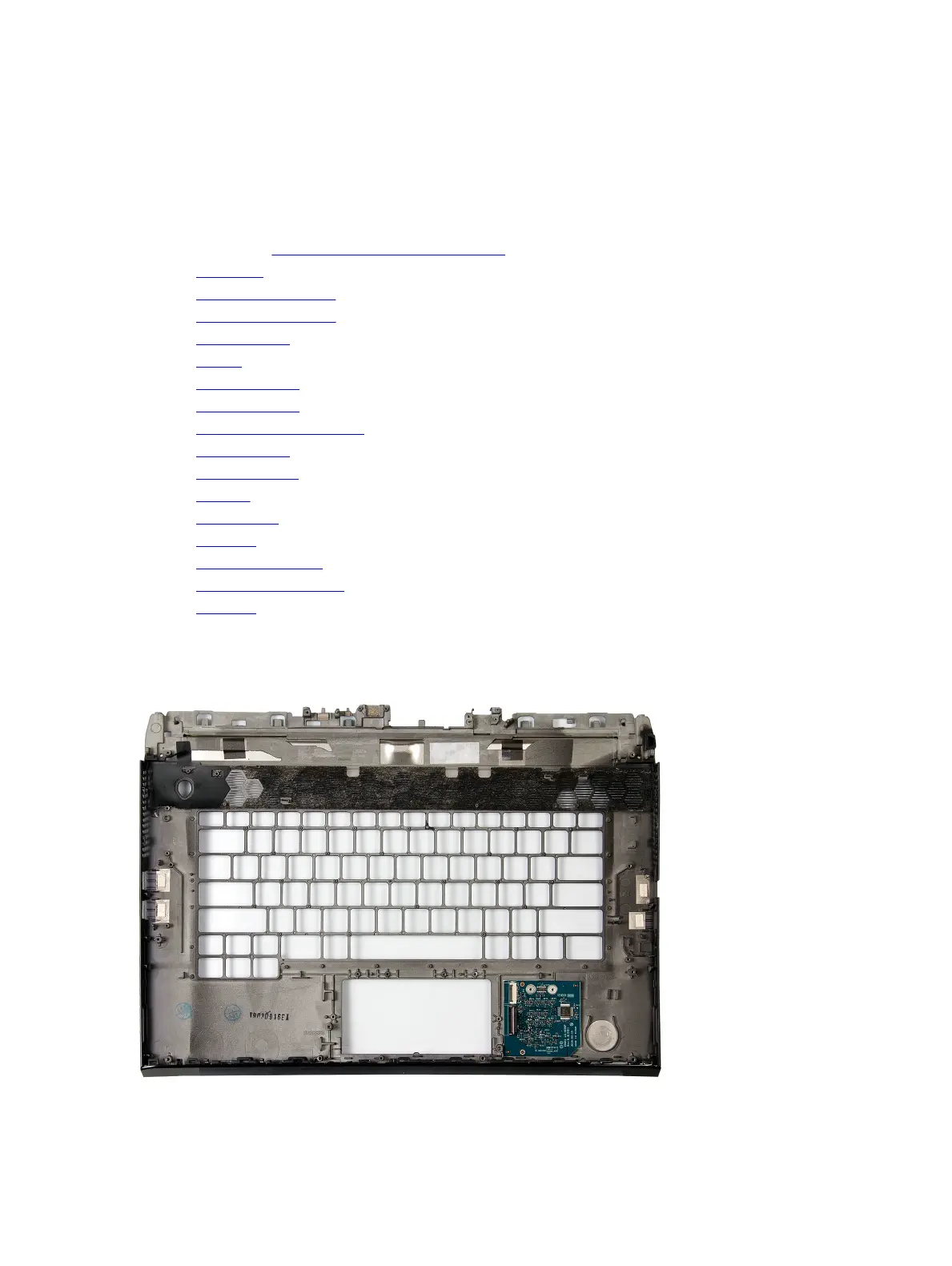

After performing the pre-requisites, you are left with the palm rest.
