Steps
1 Place the keyboard on the palm-rest assembly.

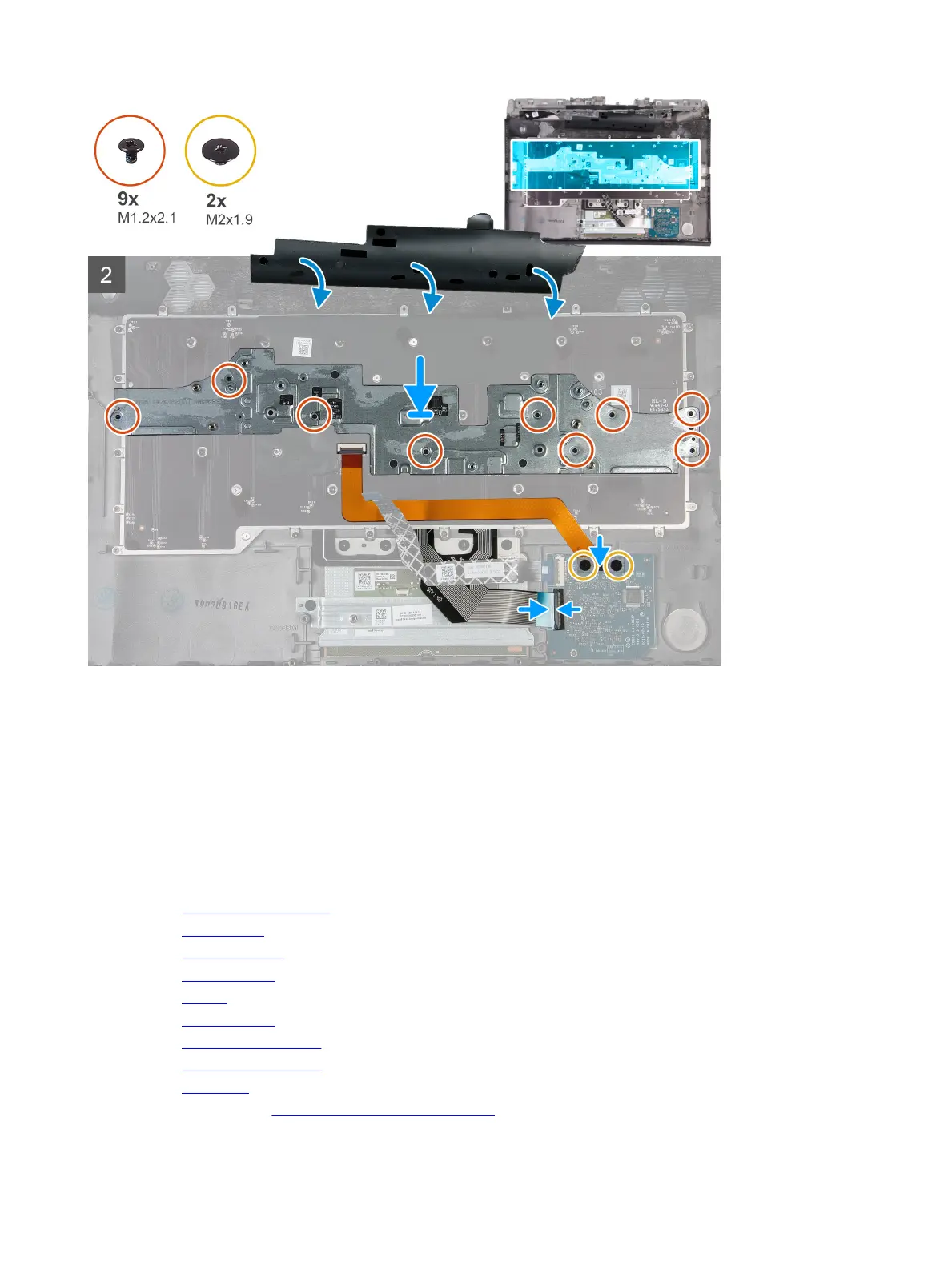

2 Replace the 33 (M1.2x1.6) screws that secure the keyboard to the palm-rest assembly.
3 Place the keyboard bracket on the keyboard.
4 Replace the nine (M1.2x2.1) screws that secure the keyboard bracket to the keyboard.
5 Connect the keyboard cable to the keyboard-controller board and close the latch.
6 Connect the keyboard-backlight cable to the keyboard controller board.
7 Replace the two (M2x1.9) screws that secure the keyboard-backlight cable to the keyboard-controller board.
Next steps
1 Install the power-button assembly.
2 Install the system board.
3 Install the right I/O-board.
4 Install the left I/O-board.
5 Install the battery.
6 Install the rear I/O-cover.
7 Install the 2230 solid-state drive. (if applicable)
8 Install the 2280 solid-state drive. (if applicable)
9 Install the base cover.
10 Follow the procedure in After working inside your computer.
