Steps

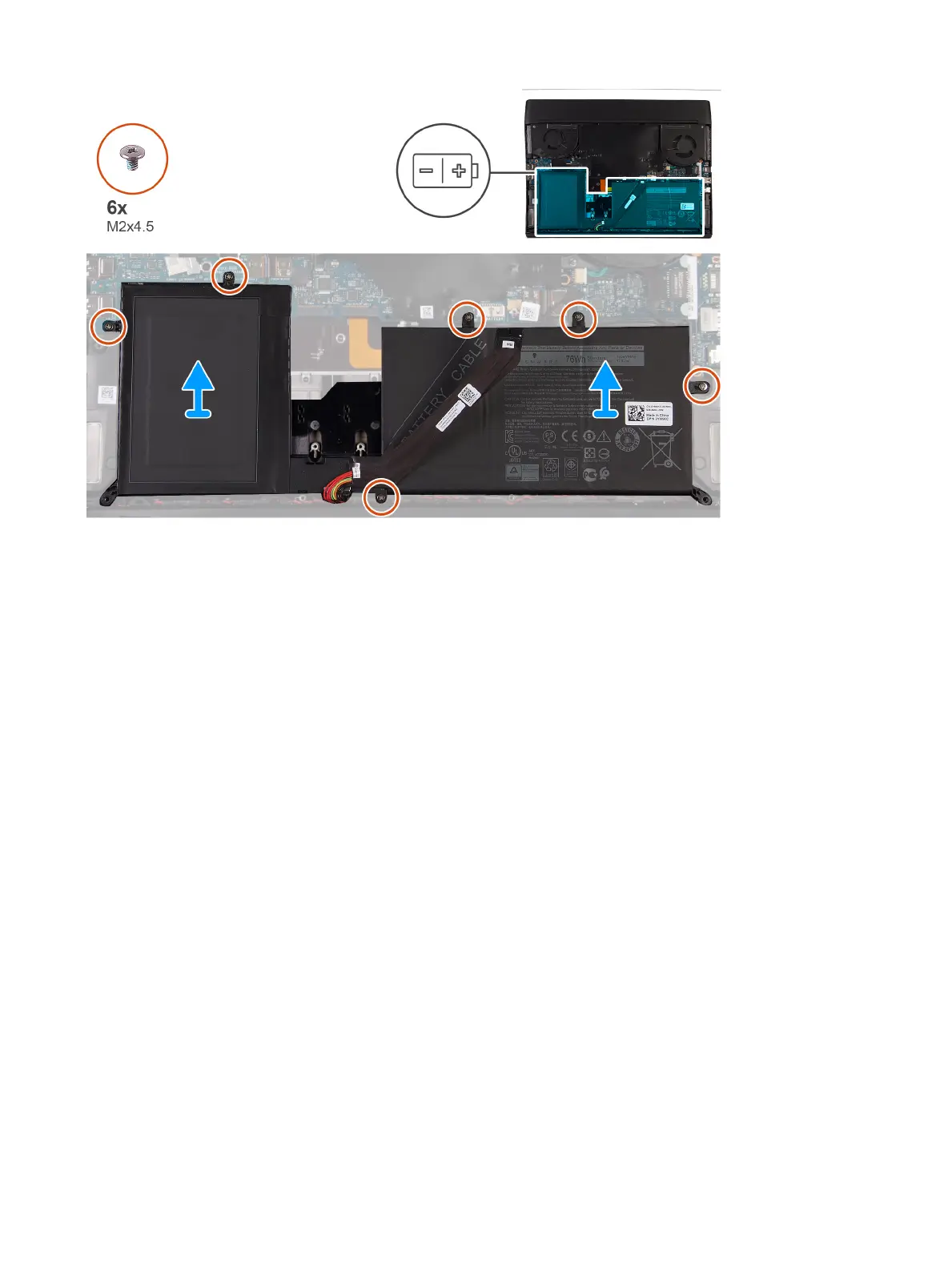

1 Ensure that the battery cable has been disconnected from the system board.
2 Remove the six screws (M2x4.5) that secure the battery to the palm-rest assembly.
3 Remove the battery from the palm-rest assembly.
Installing the battery
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the battery and provides a visual representation of the installation procedure.
26
