5 Remove the battery.
About this task

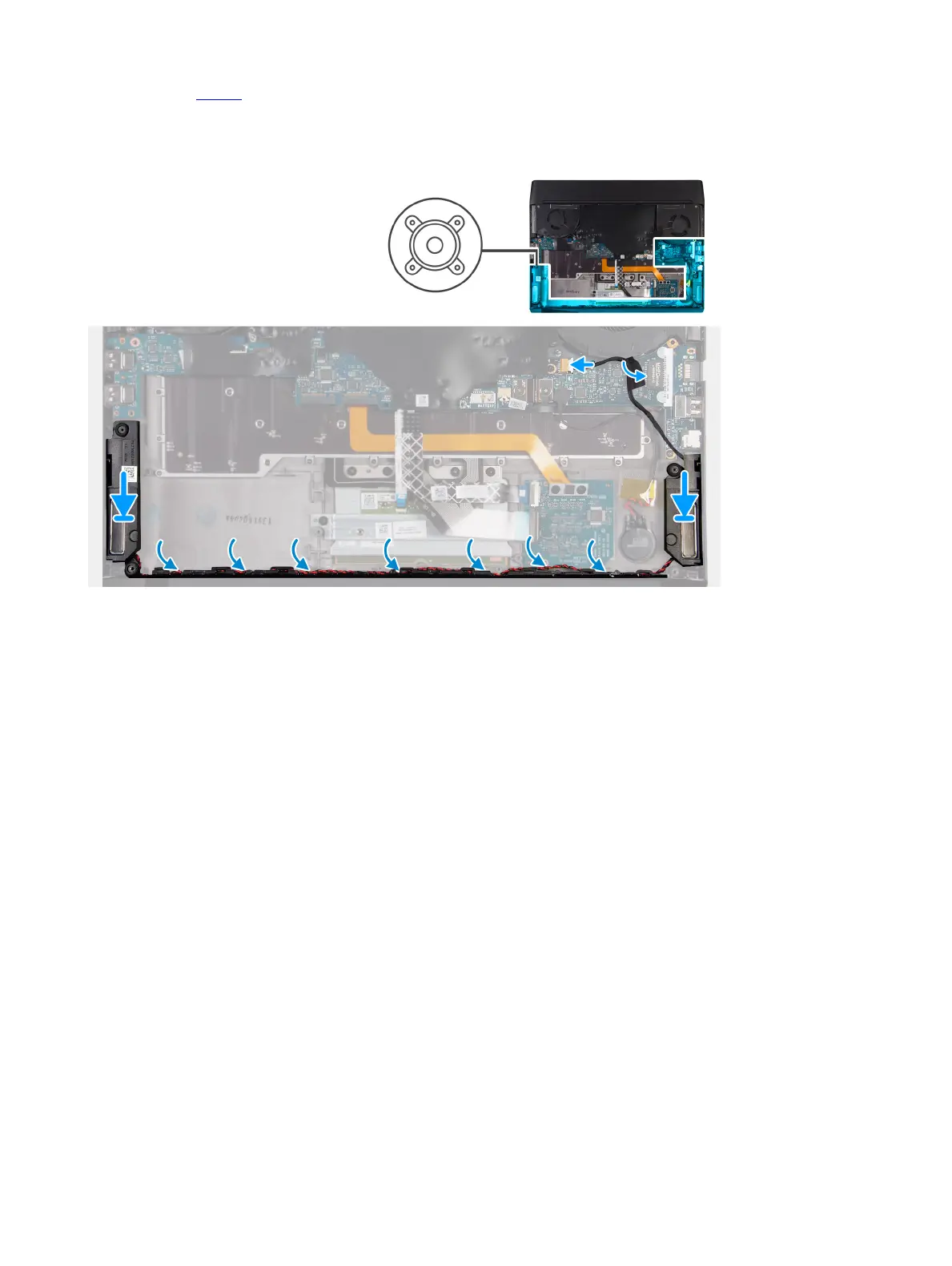

The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
Steps
1 Disconnect the speaker cable from the right I/O-board.
2 Lift the right speaker o the palm-rest assembly.
3 Remove the speaker cables from the routing guides on the palm-rest assembly.
4 Lift the left speaker o the palm-rest assembly.
Installing the speakers
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the speakers and provides a visual representation of the installation procedure.
37
