Steps

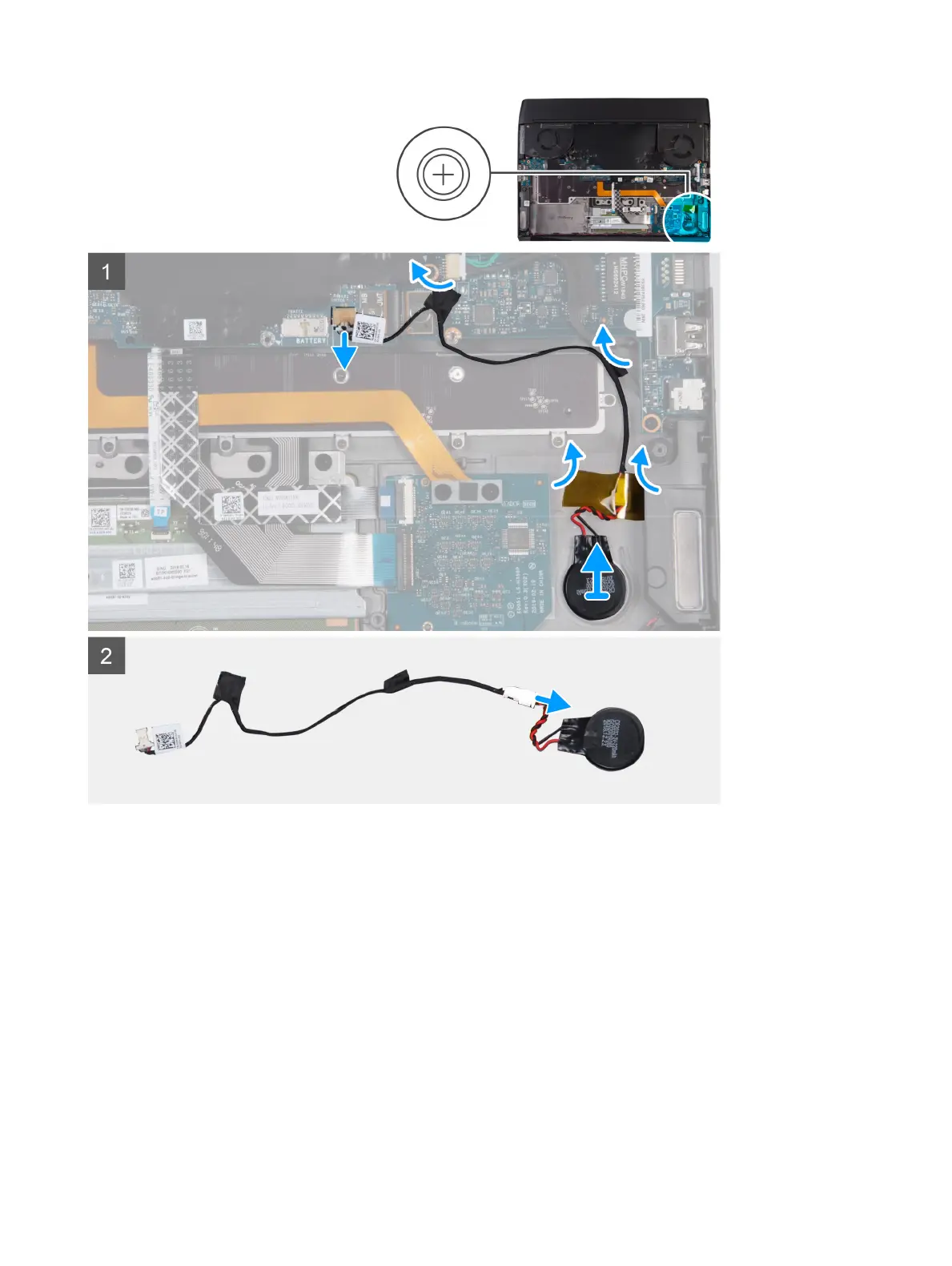

1 Disconnect the coin-cell battery cable from the connector on the system board.
2 Peel the tapes securing the coin-cell battery cable to the right I/O-board and palm-rest assembly.
3 Peel and lift the coin-cell battery o the palm-rest assembly along with its cable.
4 Disconnect the coin-cell battery from the coin-cell battery cable.
Installing the coin-cell battery
Prerequisite
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the installation
procedure.
28
