5

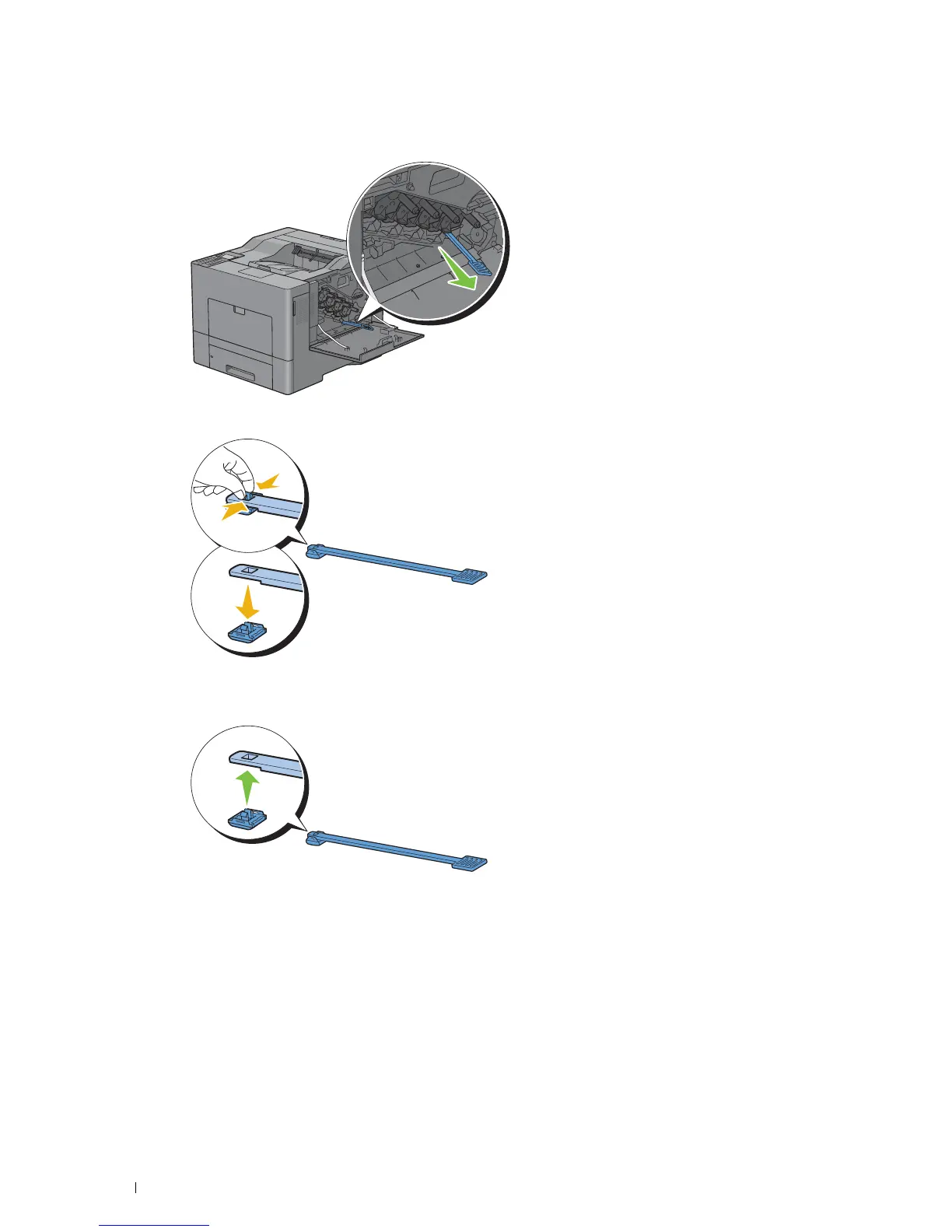

Remove the cleaning rod from inside the printer.

6

Remove the cleaning pad by pressing the white tabs between your thumb and index finger.

7

Unpack a new cleaning pad.

8

Attach the new cleaning pad to the cleaning rod.

Maintaining Your Printer 276
