Action Yes No
4b Print the Color Regi Configuration Chart and manually correct the color The task is complete. Contact Dell.
registration.
a Launch the Tool Box , and click Maintenance on the Printer
Maintenance tab.
b Click Start under Print Color Regi Chart in Color Registration
Adjustments .
The Color Regi Configuration Chart is printed.
c Identify the offset values from the chart and specify each value for
process, left, and right colors in Registration Adjustments . See
"Adjusting Color Registration" for details.
d Click Apply New Settings .
e Click Start under Print Color Regi Chart to print the Color Regi
Configuration Chart again.
Does this solve your problem?

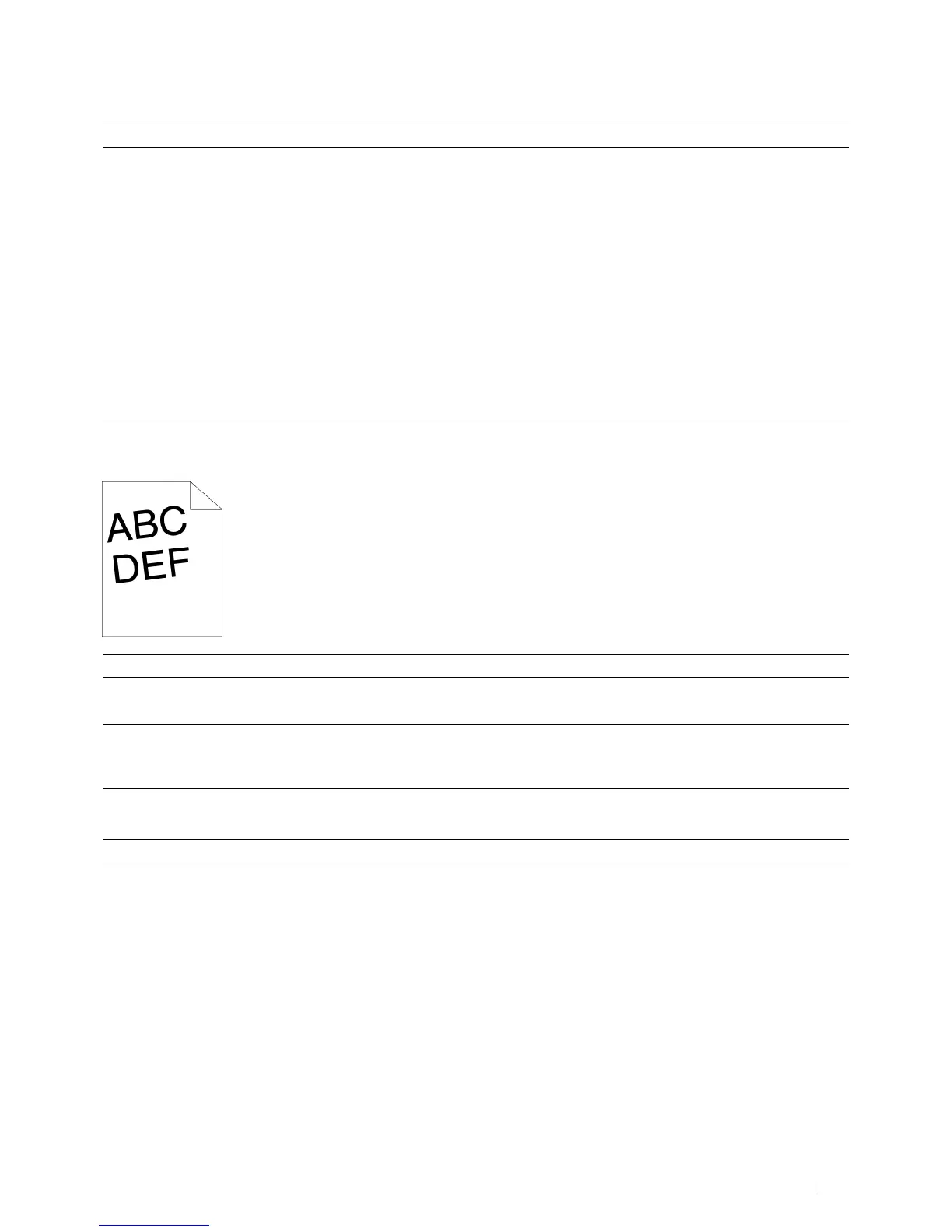

Images are skewed
Action
1 Adjust the paper guides properly.
Does this solve your problem?
2 Install the transfer belt unit according to an appropriate procedure. See
"Installing a Transfer Belt Unit."
Does this solve your problem?
Yes
The task is complete.
The task is complete.
No
Go to action 2.
Contact Dell.
Tray1/Optional 550-Sheet Feeder Misfeed Jam
Action
1 Ensure that tray1 or the optional 550-sheet feeder is properly inserted.
Does this solve your problem?
Yes
The task is complete.
No
Proceed to the action
corresponding to the
type of the print media
being used:
•Thick - 2a
• Thin - 2b
•Coated - 2c
If using paper other
than the above, go to
action 2d, 2e.
