7

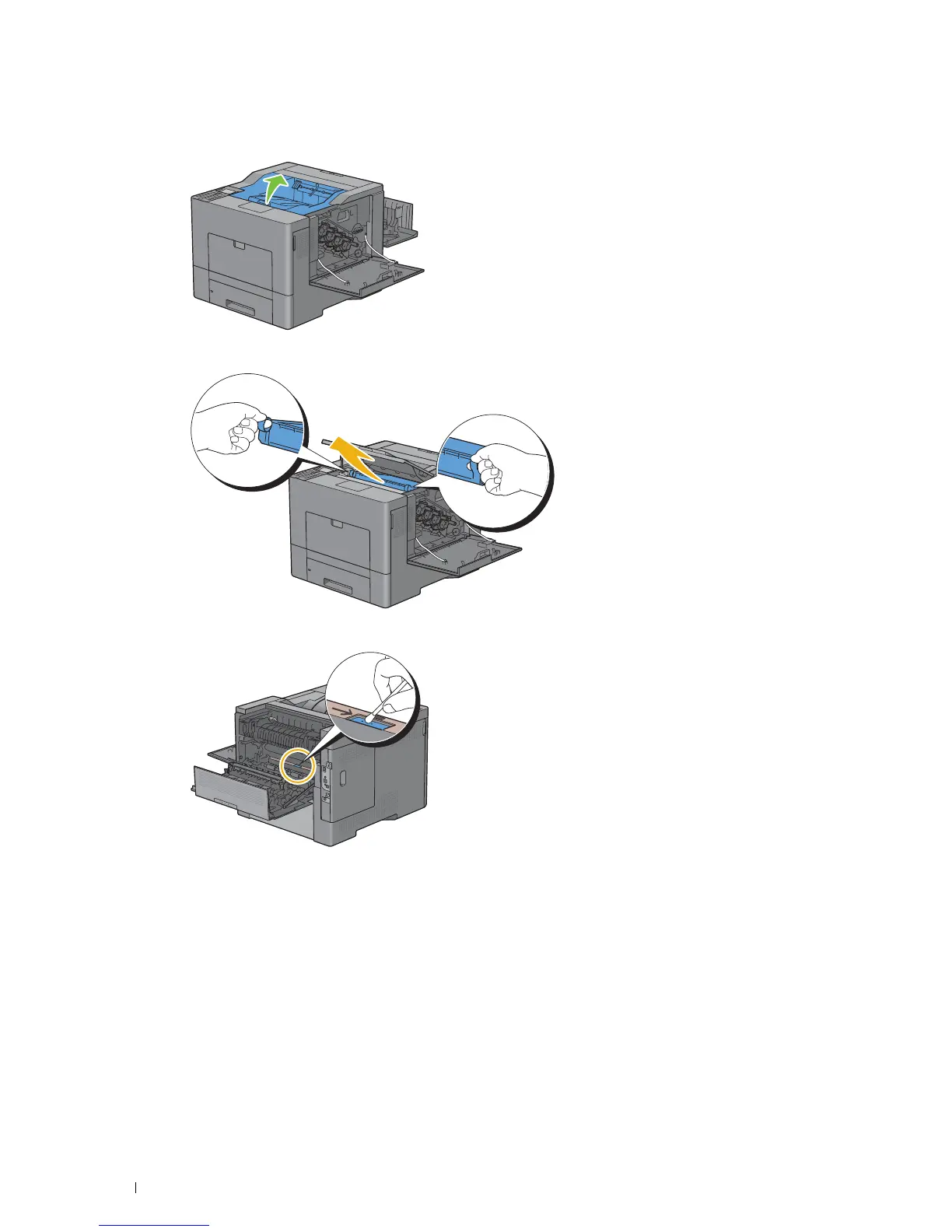

Open the top cover.

8

Put your fingers through the loops on both sides of the transfer belt unit, and then pull it out.

9

Clean the CTD sensor (as shown) with a clean, dry cotton swab.

Maintaining Your Printer 292
