Dell C2660dn User Manual

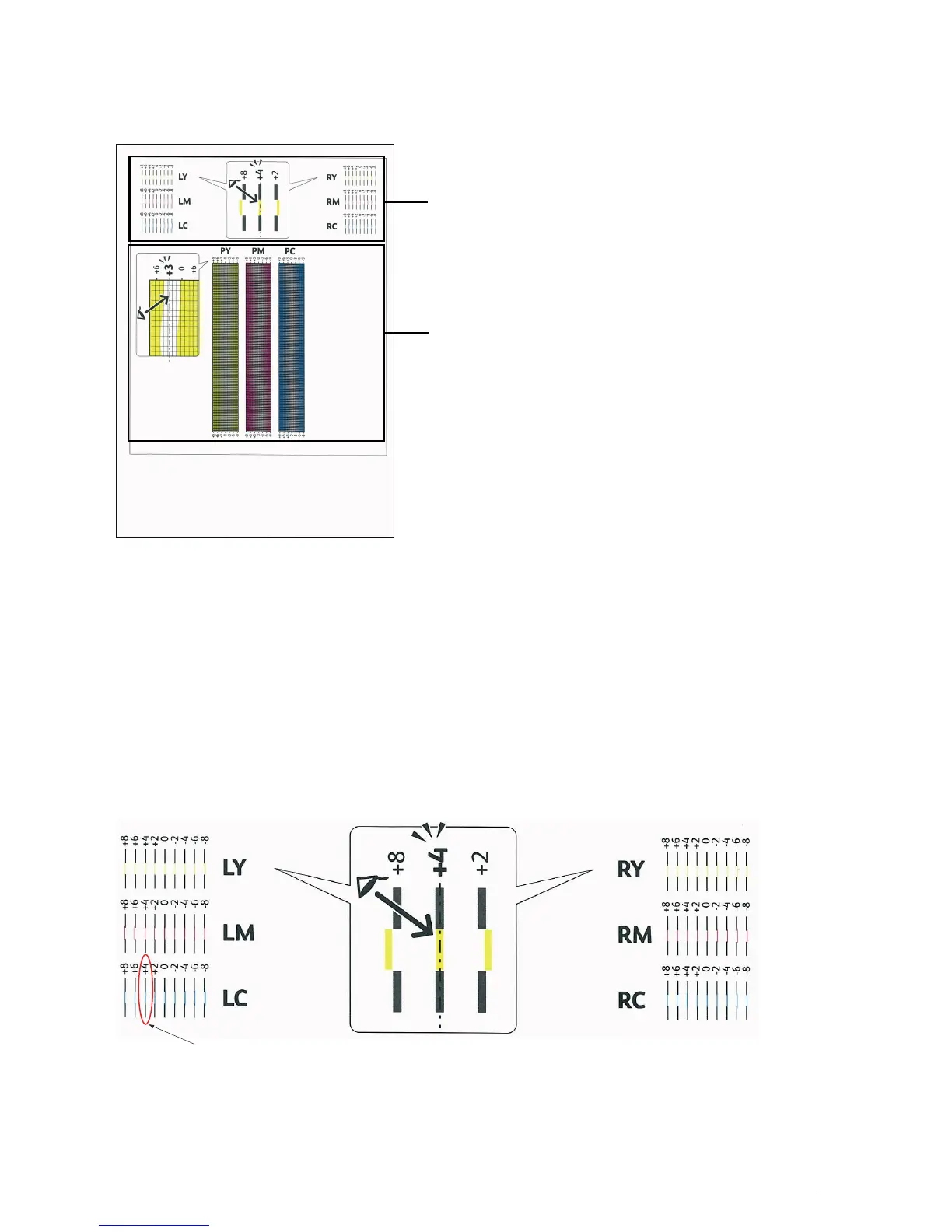

Chart 1 (fast scan)
Chart 2 (slow scan)
The Chart 1 is used to adjust the color registration for the fast scan direction, which is vertical to paper feed
direction. The Chart 2 is used to adjust the color registration for the slow scan direction, which is horizontal to paper
feed direction.
The following sections explain how to determine the adjustment values for the fast scan and the slow scan using
Chart 1 and Chart 2.
Fast Scan
On the Chart 1 of the color registration chart, find the straightest lines where the two black lines and the colored line
are most closely aligned for each color (LY, LM, LC, RY, RM, and RC). If you find the straightest line, make a note
of the value (-8
to +8) indicated by the straightest line for each color.
When the value is 0 for each color, you do not need to adjust the color registration for the fast scan.
When the value is not 0, enter the value using the procedure in "Entering Values."
Straightest line
Maintaining Your Printer
299

Dell C2660dn Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Duplex printing mode	Auto
Print speed (black, normal quality, A4/US Letter)	27 ppm
Duplex print speed (black, normal quality, A4/US Letter)	18 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	50000 pages per month
Recommended duty cycle	750 - 3500 pages per month
Number of print cartridges	4
Page description languages	Microsoft XPS, PCL 6, PostScript 3
Paper input type	Paper tray
Total input capacity	400 sheets
Total output capacity	250 sheets
Maximum input capacity	950 sheets
Envelopes sizes	10, C5, DL, Monarch
Maximum print size	216 x 356 mm
Paper tray media types	Coated paper, Envelopes, Heavy paper, Labels, Plain paper, Recycled paper, Thick paper
Paper tray media weight	60 - 216 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size)
ISO A-series sizes (A0...A9)	A4, A5
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C5
Maximum ISO A-series paper size	A4
Wi-Fi	No
Security algorithms	SSL/TLS
Mobile printing technologies	Not supported
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	5
Noise level (idle)	25.5 dB
Maximum internal memory	- MB
Sound pressure level (printing)	53 dB
Display	LCD
Certification	GS, RoHS, WEEE, ErP Lot 6
Product color	Black
Display number of lines	4 lines
AC input voltage	230 V
Power consumption (printing)	- W
Sustainability certificates	Blue Angel, ENERGY STAR
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Linux operating systems supported	RedHat EL Linux 5.0, SuSE Linux 10, SuSE Linux 11
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	10 - 85 %
Package depth	686 mm
Package width	570 mm
Package height	526 mm
Package weight	30500 g
Cables included	AC

Weight and Dimensions

Depth	485 mm
Width	439 mm
Height	379 mm
