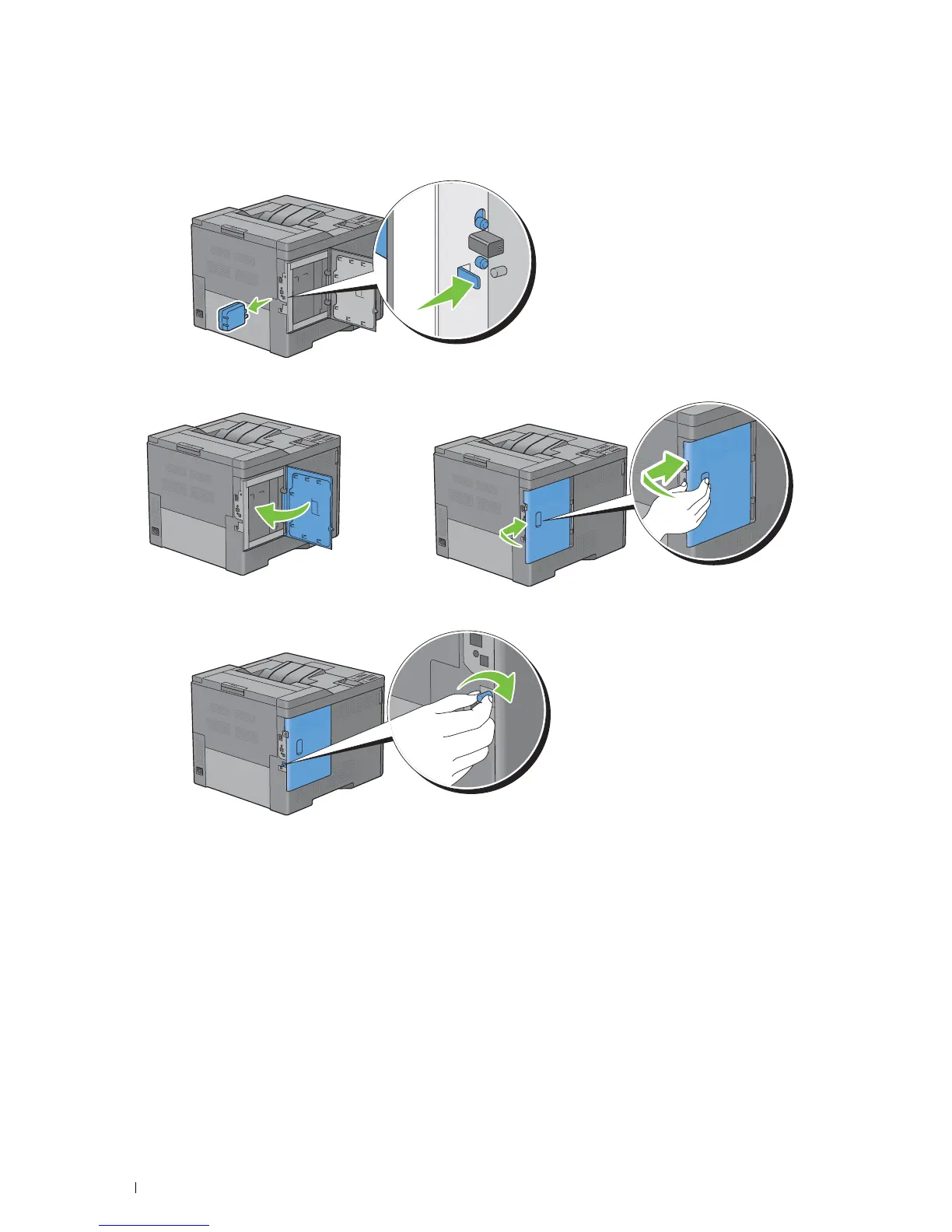

Remove the wireless adapter from the printer by releasing the adapter's hook while pushing the wireless adapter

towards the front of the printer.

6

Close the left side cover, and then slide it towards the front of the printer.

7

Turn the screw clockwise.

8

Turn on the printer.

Removing Options 306
