Dell C2660dn - Clearing Paper Jams From the Optional 550-Sheet Feeder

361 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

5

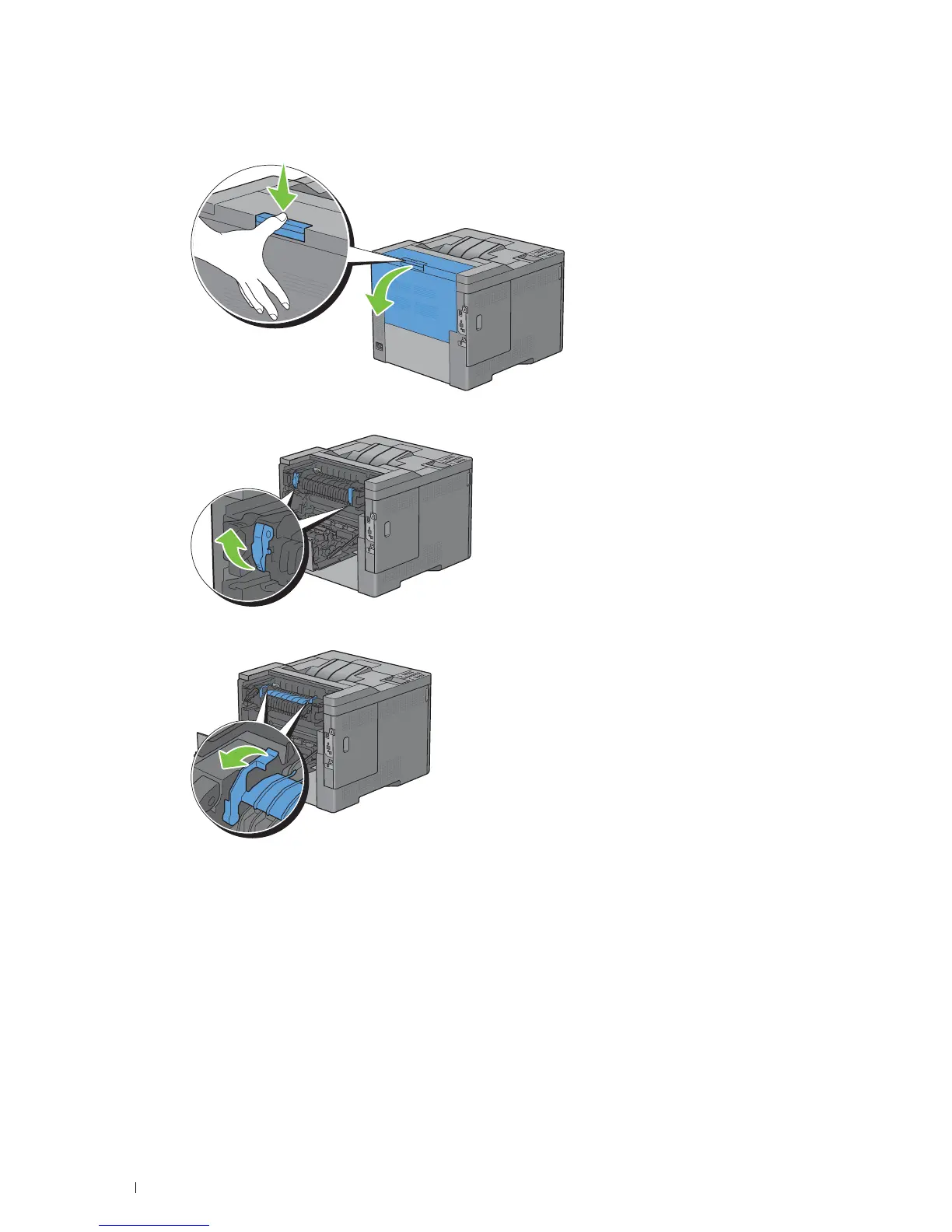

Push down the latch to open the rear cover.

6

Lift the levers on both sides of the fusing unit.

7

Hold and lower the tab to open the inner part.

Clearing Jams 316
