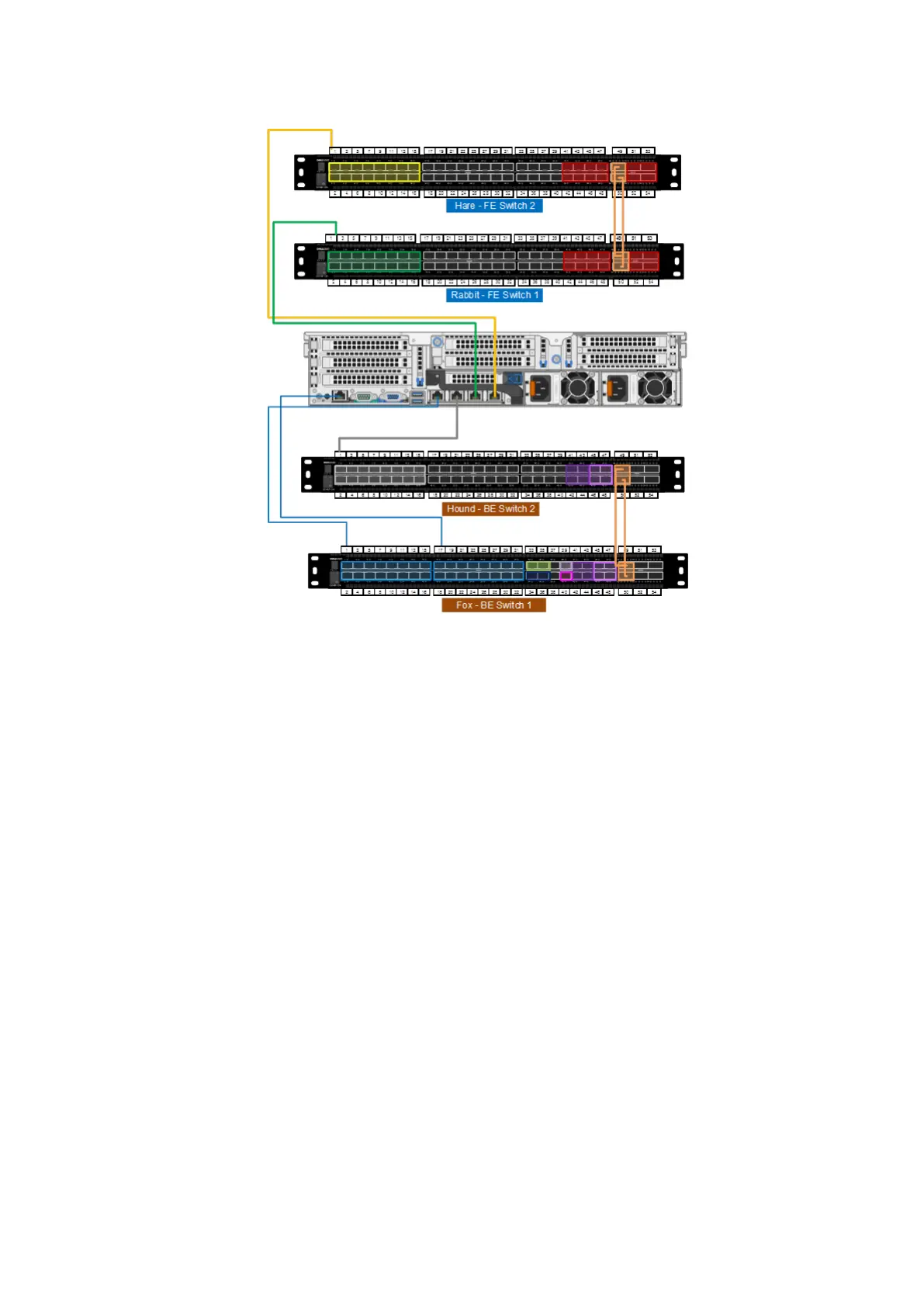

The front-end switch and back-end switch connections to an EX300 node are shown in the following diagram.
Figure 88. Front-end and back-end switch connections to an EX300 node
EX300 Platform
113
