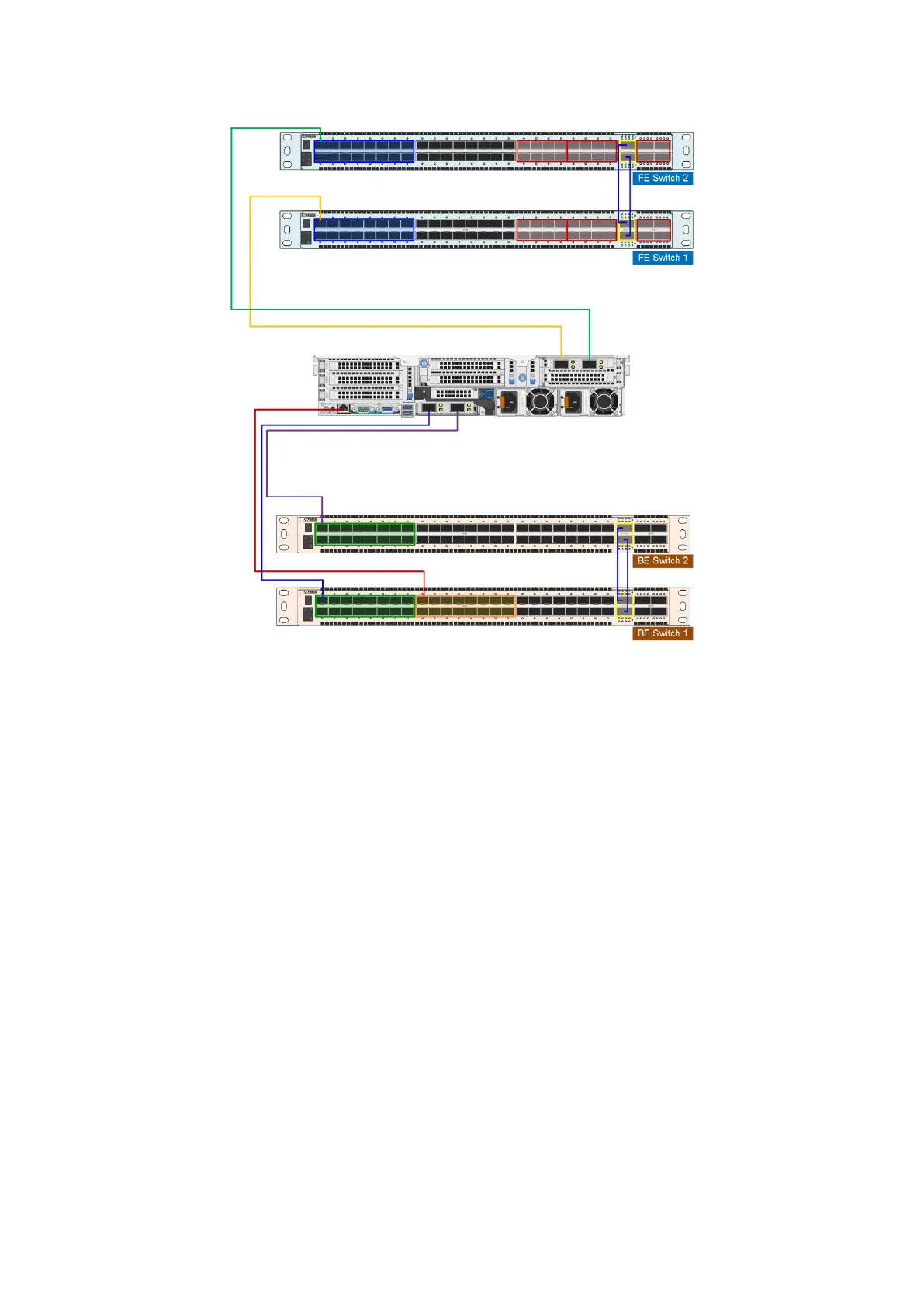

The front-end switch and back-end switch connections to an EXF900 node are shown in the following diagram.
Figure 35. Front-end and back-end switch connections to an EXF900 node
54
EXF900 Platform
