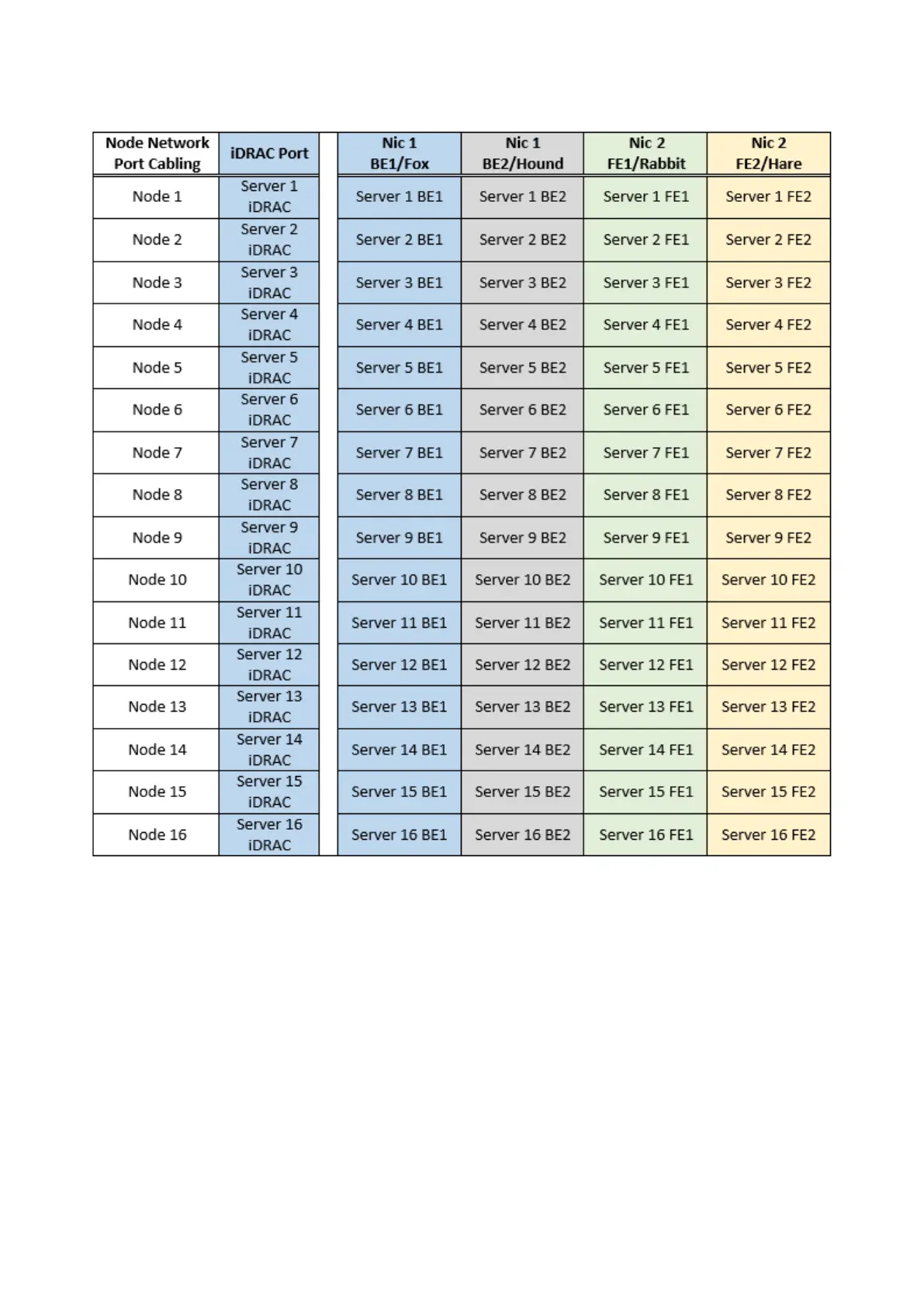

The EX3000 node port to the iDRAC, back-end switch, and front-end switch port connections are listed in the following table.
Figure 129. EX3000 node network port cabling connections
152
EX3000 Platform
