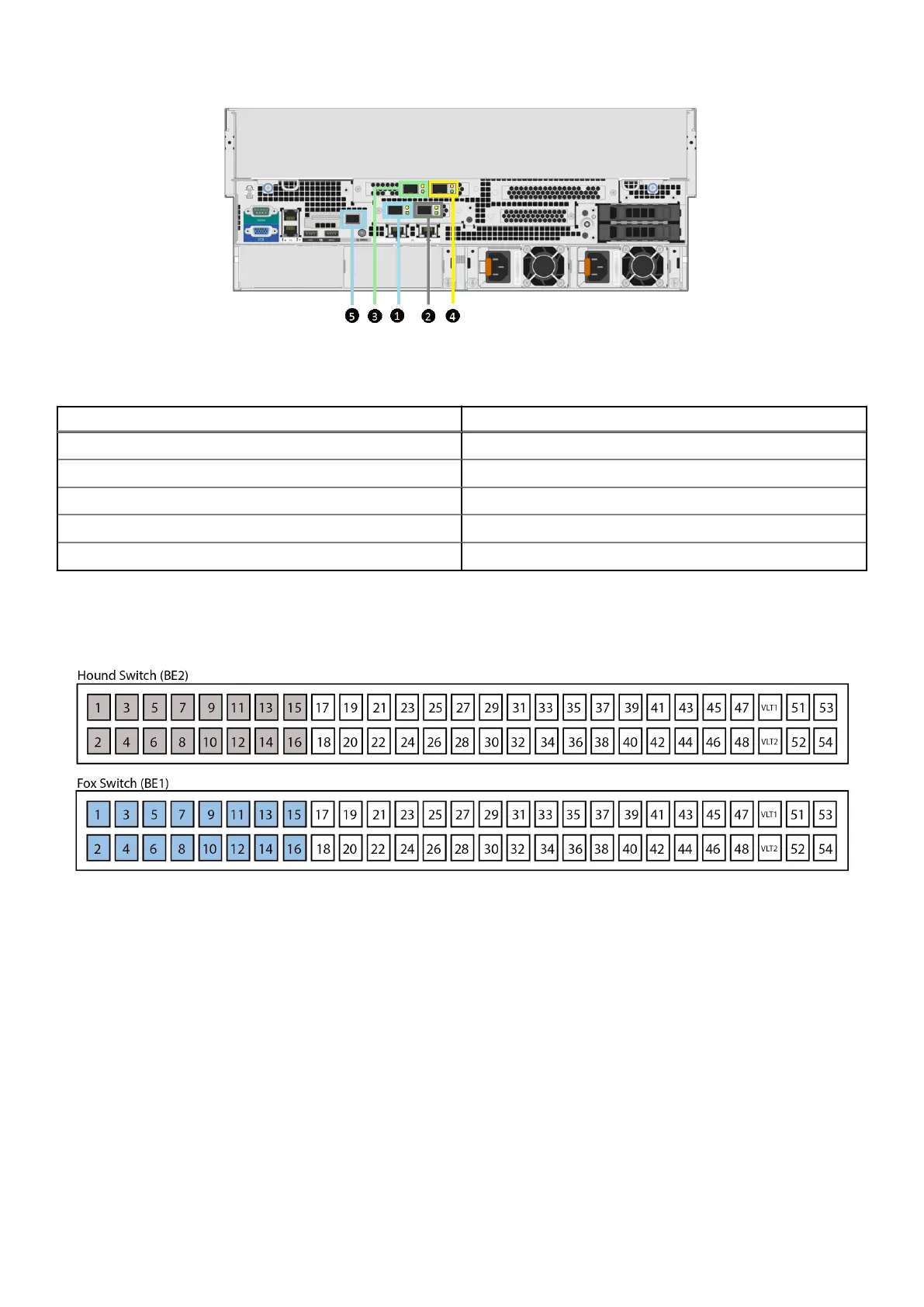

Figure 127. Back-end switch, front-end switch, and iDRAC ports on an EX3000S node
Table 55. Legend for Back-end switch, front-end switch, and iDRAC ports on EX30000S node
Legend Description
1 BE1 Fox switch port
2 BE2 Hound switch port
3 FE1 Rabbit switch port
4 FE2 Hare switch port
5 iDRAC Port
The numbered back-end switch ports used for connecting to the ports on the EX3000 nodes are shown in the following
diagram. Port 1 on the Hound switch (BE2) connects to port 2 on Node 1. Port 2 on the Hound switch (BE2) connects to port
2 on Node 2, and so on. Similarly, Port 1 on the Fox switch (BE1) connects to port 1 on Node 1. Port 2 on the Fox switch (BE1)
connects to port 1 on Node 2, and so on.
Figure 128. Node ports on back-end switches
EX3000 Platform
151
