Dell ECS EX Series

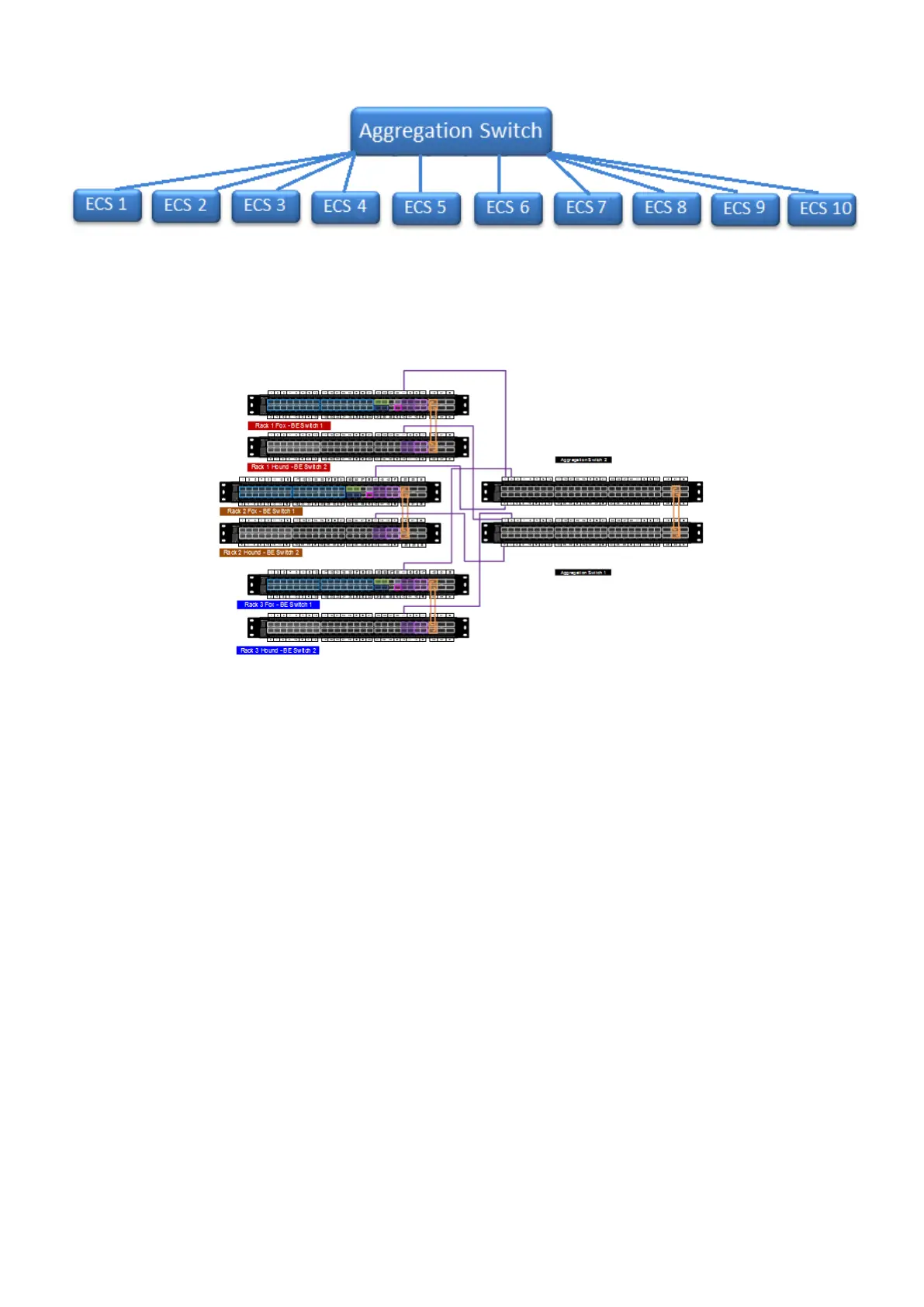

Figure 101. Star topology
The aggregation switch(es) connecting to the intra-rack networks must be set up as a trunk and allow VLAN traffic to flow
between all ports in the inter-rack network.
The inter-rack star topology between EX-Series racks are shown in the following figure.
Figure 102. Inter-rack switch connectivity - star topology
EX300 Platform
121
